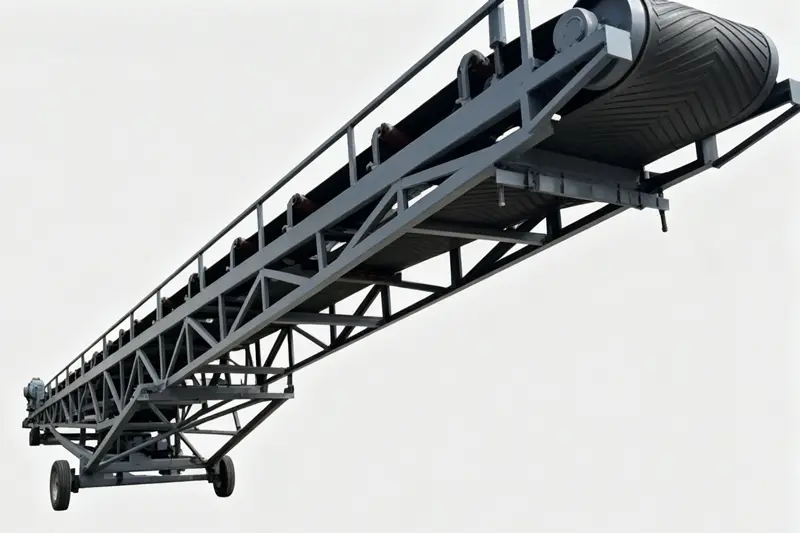

Custom Mobile Belt Conveyor Products, Service
Product Description
Product Introduction
The mobile belt conveyor is a highly flexible continuous conveying equipment designed to solve material transfer problems in different scenarios. It breaks the space limitations of traditional fixed conveyors, and can quickly adjust the position, conveying angle and length according to operation requirements, widely used in material handling links of various industries. Integrating modern mechanical design concepts and advanced manufacturing processes, the equipment not only ensures conveying efficiency, but also greatly improves operation convenience and use safety, making it an ideal choice for enterprises to optimize material flow and reduce labor costs.
Components
1. Conveying System:
Consists of high-strength wear-resistant belt, driving drum, driven drum and idler set. The belt is made of polyester canvas, with wear-resistant and anti-tensile properties; the drum surface is anti-slip treated to ensure stable belt operation; the idler set adopts sealed bearing design, effectively reducing friction resistance and maintenance frequency.
2. Walking System:
Equipped with large-diameter solid rubber wheels, some models can be optionally equipped with steering wheels and traction devices, allowing a single person to easily move and steer the equipment. The tires have good grip and shock absorption performance, adapting to various complex ground environments.
3. Frame Structure:
Welded with thickened section steel, treated with sandblasting rust removal and electrostatic spraying, with excellent corrosion resistance and impact resistance. The frame can be folded or telescopically adjusted, facilitating equipment storage and transportation.
4. Drive System:
Selects high-efficiency and energy-saving motor and reducer, with stable and reliable power output. The motor has overload protection function, and the operating speed can be adjusted according to conveying requirements to meet the conveying needs of different materials.
5. Safety Devices:
Equipped with emergency stop button, belt deviation detection device, speed sensor and protective fence, comprehensively ensuring the safety of operators and equipment. The equipment operates with low noise, meeting national environmental protection standards.
Working Principle
The mobile belt conveyor drives the driving drum to rotate through the drive motor, and drives the belt to circulate by means of the friction between the drum and the belt. Materials are evenly fed into the belt from the feeding end, and are conveyed to the discharging end with the continuous movement of the belt. The equipment can change the conveying angle by adjusting the frame height, realizing horizontal, inclined or vertical conveying of materials. Some models can also be equipped with lifting devices to further expand the conveying height range. In case of emergency, the operator can press the emergency stop button, and the equipment will stop running immediately, effectively avoiding safety accidents.
Scope of Application
1. Mining Industry:
Used for underground transfer and ground loading of materials such as ore and gangue, flexibly adapting to complex mine terrain.
2. Ports and Terminals:
Completes the loading, unloading and transfer of bulk cargo in containers, quickly docking with different transport vehicles and ships, improving port operation efficiency.
3. Building Materials Industry:
Conveys building materials raw materials and finished products such as sand, gravel, cement and ceramic tiles, meeting the material flow requirements of production lines and storage areas.
4. Grain Industry:
Realizes the warehousing, outbound and transfer of grain. The equipment is designed with dust prevention, effectively protecting grain from pollution.
5. Logistics and Warehousing:
Used for loading, unloading and handling of goods in warehouses, reducing labor input and improving the automation level of warehouse operations.
6. Construction Sites:
Conveys construction materials such as sand, gravel and concrete, adapting to the changing operation environment of construction sites and accelerating construction progress.
Product Features
1. Flexible Movement:
Equipped with walking wheels and traction devices, the equipment position and conveying angle can be quickly adjusted to adapt to different operation scenarios.
2. High-Efficiency Conveying:
Adopting wide belt and high-torque motor, the conveying speed can reach up to 2.5m/s, with strong conveying capacity, meeting the transfer requirements of large quantities of materials.
3. Durable:
The frame is welded with thickened section steel, the belt is made of wear-resistant material, and key parts are equipped with sealed bearings, resulting in long service life and low maintenance cost of the equipment.
4. Easy Operation:
Adopting humanized design, operators can skillfully operate the equipment after simple training. The equipment has multiple control modes, realizing manual, semi-automatic and automatic operation.
5. Safe and Reliable:
Equipped with complete safety protection devices, the equipment operates stably with low noise, providing a safe and comfortable working environment for operators.
6. Strong Adaptability:
The conveying length, width and height can be customized according to customer needs, meeting the personalized material conveying requirements of different industries.
Technical Parameters
| Section form | Belt speed (m/s) | Bandwidth (mm) | |||||
| 500 | 650 | 800 | 1000 | 1200 | 1400 | ||
| Conveying capacity (t/h) | |||||||
| Trough type | 0.8 | 78 | 131 | - | - | - | - |
| 1.0 | 97 | 169 | 278 | 435 | 655 | 891 | |
| 1.25 | 122 | 206 | 348 | 544 | 819 | 1115 | |
| 1.6 | 156 | 264 | 445 | 696 | 1048 | 1427 | |
| 2.0 | 191 | 323 | 546 | 853 | 1284 | 1748 | |
| 2.5 | 232 | 391 | 661 | 1033 | 1556 | 2118 | |
| 3.15 | - | - | 824 | 1233 | 1858 | 2528 | |
| 4.0 | - | - | - | - | 2202 | 2996 | |
| Flat shape | 0.8 | 41 | 67 | 118 | - | - | - |
| 1.0 | 52 | 88 | 147 | 230 | 345 | 469 | |
| 1.25 | 66 | 110 | 184 | 288 | 432 | 588 | |
| 1.6 | 84 | 142 | 236 | 368 | 553 | 756 | |
| 2.0 | 103 | 174 | 289 | 451 | 677 | 922 | |
| 2.5 | 125 | 211 | 350 | 546 | 821 | 1110 | |
Frequently Asked Questions
Q: How is the mobile belt conveyor moved between different worksites?
A: It is equipped with wear-resistant solid rubber wheels and optional steering traction devices. Depending on the conveyor size, it can be relocated manually by workers or towed across short distances by site vehicles.
Q: Can the conveying angle and discharge height be adjusted?
A: Yes, the mobile belt conveyor features an adjustable frame and can be equipped with a lifting system (manual or hydraulic) to seamlessly adjust the conveying angle and operational discharge height.
Q: What types of materials are best suited for this equipment?
A: The conveyor works well with bulk materials, granular items, and packaged goods, including ores, gravel, sand, grain, chemical fertilizers, and warehouse carton boxes.
Q: What safety mechanisms are integrated into the machine?
A: The unit features emergency stop switches, a belt deviation detection unit, speed monitoring sensors, overload motor protection, and protective enclosures for the moving mechanical elements.
Q: Can the conveyor specifications be customized?
A: Absolutely. Custom parameters including overall conveyor length, belt width, travel speed, motor power ratings, and belt types can be tailored to match exact project requirements.
