Product Description
Core Equipment Overview

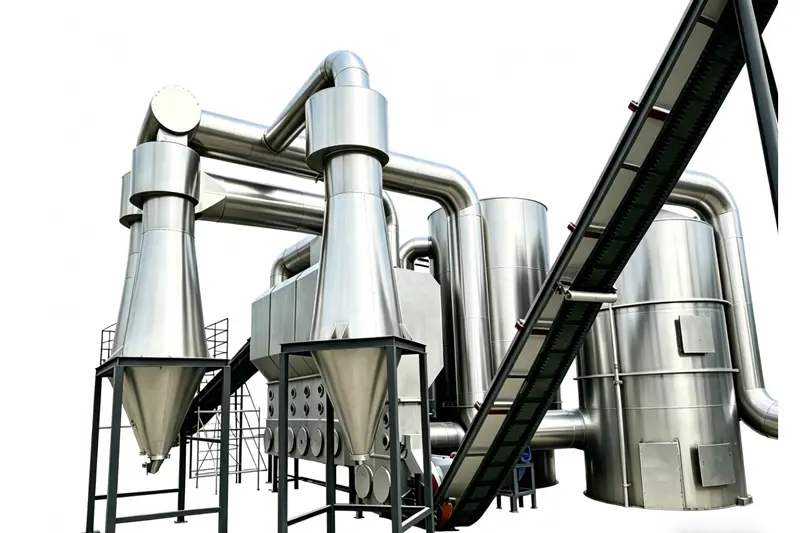

This dihydrate calcium chloride drying equipment is specifically engineered for 68% content solid calcium tablets formed through concentration and cooling. It integrates a boiling (vibrating) fluidized bed drying system with a cooling bed, enabling an automated workflow from raw material drying to cooling and packaging. With precise control over final product content and temperature, it caters to large-scale production requirements.
| Item | Details |
|---|---|
| Equipment Type | Integrated boiling (vibrating) fluidized bed drying and cooling system |
| Processing Capacity | Customizable based on customer needs (500kg/h - 5000kg/h) |
| Core Control Parameters | Drying temperature: 220°-240°, finished product content: 72-74%, post-cooling temperature: 50-60℃ |
| Automation Level | Fully automated material conveying and temperature control, requiring minimal manual supervision |
Applicable Raw Material Range
The equipment is developed for specific raw materials with strong adaptability, and its specific scope of application is as follows:
| Raw Material Type | State | Content Requirement |
|---|---|---|
| Dihydrate calcium chloride solid tablets | Blocky or flaky solids formed after concentration and cooling | 68%±1% |
| Other similar calcium salt solids | Crystalline solids after concentration and cooling | Water content similar to dihydrate calcium chloride |
Equipment Working Principle
The equipment operates on the principles of fluidized drying and air cooling, achieving material drying and temperature reduction through heat and mass exchange:
1. Drying Stage: Hot air is heated to 220°-240° and then introduced into the boiling fluidized bed, where it fluidizes the solid calcium tablets. The materials fully contact the high-temperature hot air, rapidly evaporating excess moisture. Precise temperature control ensures the final content stabilizes at 72-74%.
2. Cooling Stage: Dried materials enter the cooling bed, where ambient temperature air passes through the material layer, dissipating heat and reducing the material temperature to 50-60℃, preventing high temperatures from affecting subsequent packaging and storage.
Refined Working Procedures
| Step Number | Operation Process | Core Parameter Control |
|---|---|---|

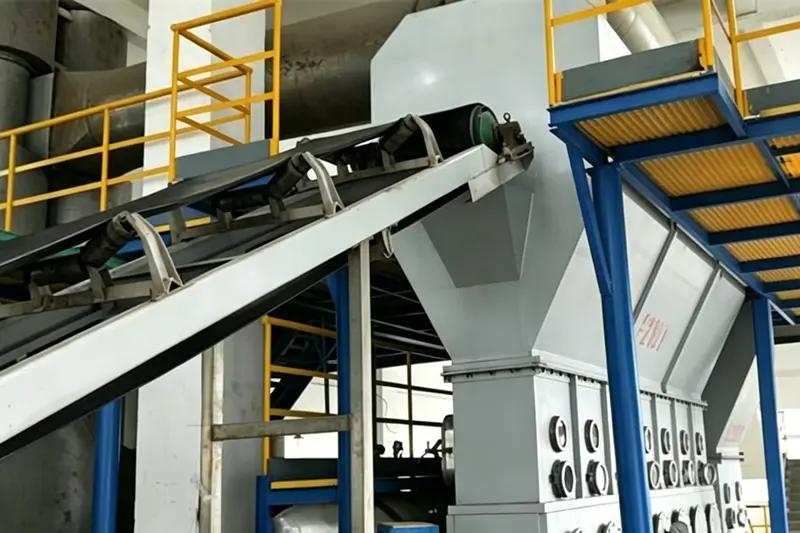

| Step 1 | Raw Material Conveying | 68% content solid calcium tablets are uniformly fed into the boiling fluidized bed via a belt conveyor; conveying speed is adjusted based on processing capacity |
| Step 2 | Hot Air Drying | 220°-240° hot air is continuously supplied to the fluidized bed, maintaining stable material fluidization; drying time is dynamically adjusted according to initial material moisture content |
| Step 3 | Content Detection | Material content is monitored online. When it reaches 72-74%, the system automatically triggers material transfer to the cooling bed |
| Step 4 | Ambient Cooling | Ambient temperature air is supplied to the cooling bed at a constant velocity; materials are evenly distributed in the bed and cooled to 50-60℃ |
| Step 5 | Finished Product Conveying | Cooled materials are transferred to the packaging silo via a conveyor, awaiting subsequent packaging processes |
Core Equipment Advantages
| Advantage Category | Specific Content |
|---|---|
| Precise Temperature Control | Drying temperature is controlled within ±5℃, with finished product content error ≤0.5%, ensuring stable product quality |
| High Efficiency & Energy Saving | The fluidized bed structure enables full contact between materials and hot air, improving thermal efficiency by over 20% compared to traditional drying equipment |
| Automated Operation | The entire process from raw material conveying to finished product storage is automated, reducing manual intervention and labor costs |
| Strong Adaptability | Optimized for 68% content solid calcium tablets, and compatible with drying and cooling of similar calcium salt materials |
| User-Friendly Operation | Equipped with an intelligent control system for visual parameter adjustment, automatic fault alarm, and diagnosis |
Frequently Asked Questions (FAQ)
What is the primary material input capacity range for this drying equipment?
The processing capacity is fully customizable based on production demands, typically ranging from 500kg/h to 5000kg/h.
What are the key drying and cooling temperatures managed by the system?
The high-temperature drying stage is strictly maintained at 220°-240° with a control accuracy of ±5℃. In the cooling stage, the post-cooling material temperature is brought down to 50-60℃.
How does the system ensure the finished product reaches the desired concentration?
The equipment uses real-time online content monitoring. When the material's solid calcium concentration stabilizes at 72-74% (with error margins ≤0.5%), the system automatically transfers the product to the cooling stage.
Can the system process materials other than dihydrate calcium chloride?
Yes. While primarily optimized for 68% content dihydrate calcium chloride solid tablets, it has high adaptability to process other crystalline calcium salt solids with similar water content.
How does the fluidized bed design contribute to energy efficiency?
The fluidized bed design ensures continuous, complete contact between hot air and the solid materials, boosting thermal exchange efficiency by more than 20% compared to traditional drying systems.
