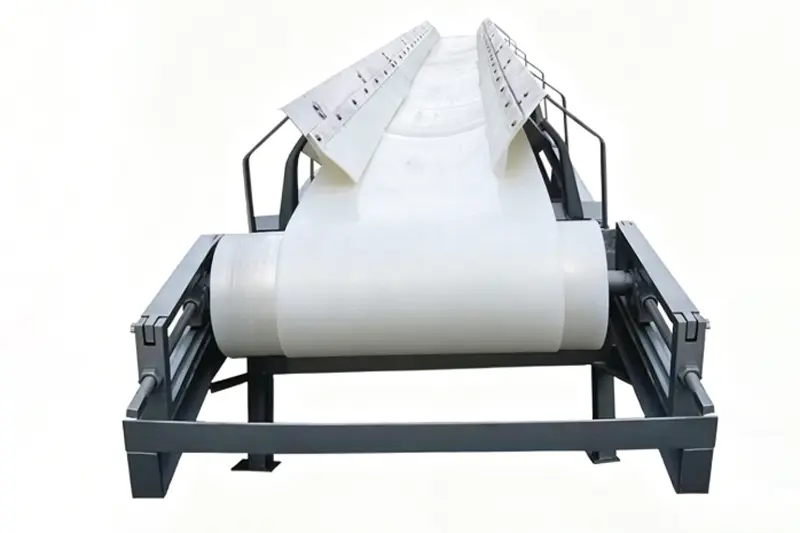

Custom Heavy-Duty Conveyor Belt For Salt Washing Production Line, Anti-Corrosion, Wear-Resistant, Food-Grade Material Factory, Product
Product Description

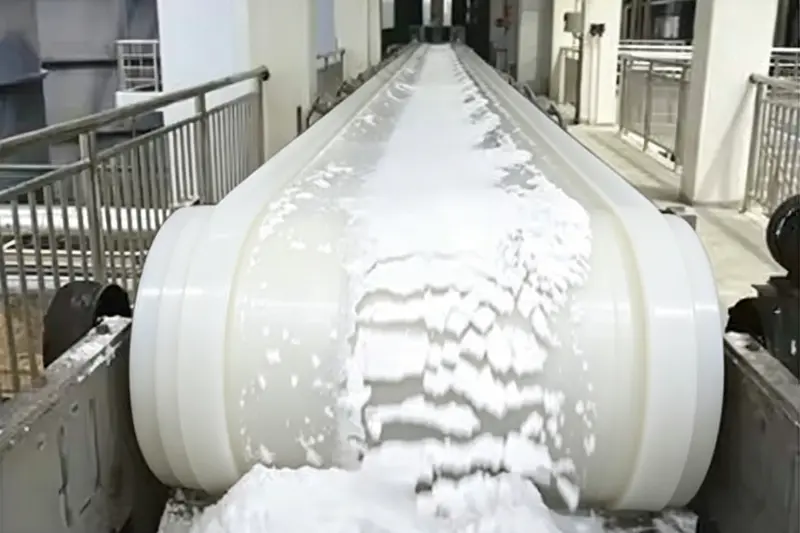

Designed specifically for water-washed salt production lines, this conveyor belt can stably, efficiently and pollution-free transport raw salt, wet water-washed salt and dehydrated salt. It is designed for the highly corrosive conditions in salt production, ensuring smooth material flow throughout the cleaning, dehydration and packaging processes.
Technical Characteristics
Food-grade Anti-corrosion Materials
The conveyor belt is made of PU herringbone rubber, and the frame is made of 304/316 stainless steel or galvanized steel, which is resistant to salt water corrosion and ensures the cleanliness of salt products.
Flexible Customization & Installation
The inclination angle is ≤ 30° (suitable for climbing conveyors), length is 3 - 300m, and width is 500 - 1400mm, customizable as needed for various factory layouts.
High Efficiency & Low Maintenance
Heavy-duty drive with conveying capacity of 10 - 50 tons/hour; energy-saving and low consumption with built-in cleaning device + removable collection trough.
Durable & Safe Operation
Reinforced frame, anti-deviation rollers and salt leakage prevention design. Perfectly integrated with salt washing machines, dehydration screens, and packaging equipment.
Working Principle
A belt conveyor mainly consists of two rollers and a closed conveyor belt. The roller that provides power is called the drive roller (driving roller); the roller that changes the direction of the conveyor belt's movement is called the redirecting roller. The drive roller is driven by a motor through a reducer, and the conveyor belt is pulled by the friction between the drive roller and the conveyor belt. Materials are fed in at the feeding end, fall onto the rotating conveyor belt, and are transported to the unloading end by the friction of the conveyor belt.
Technical Specifications
TD75 Universal Belt Conveyor Capacity Table
| Cross-sectional shape | Tape speed (m/s) | Bandwidth B (mm) | |||||
|---|---|---|---|---|---|---|---|
| 500 | 650 | 800 | 1000 | 1200 | 1400 | ||
| Transportation Capacity G (t/h) | |||||||
| Trough shape | 0.8 | 78 | 131 | - | - | - | - |
| 1.0 | 97 | 169 | 278 | 435 | 655 | 891 | |
| 1.25 | 122 | 206 | 348 | 544 | 819 | 1115 | |
| 1.6 | 156 | 264 | 445 | 696 | 1048 | 1427 | |
| 2.0 | 191 | 323 | 546 | 853 | 1284 | 1748 | |
| 2.5 | 232 | 391 | 661 | 1033 | 1556 | 2118 | |
| 3.15 | - | - | 824 | 1233 | 1858 | 2528 | |
| 4.0 | - | - | - | - | 2202 | 2996 | |
| Parallel | 0.8 | 41 | 67 | 118 | - | - | - |
| 1.0 | 52 | 88 | 147 | 230 | 345 | 469 | |
| 1.25 | 66 | 110 | 184 | 288 | 432 | 588 | |
| 1.6 | 84 | 142 | 236 | 368 | 553 | 756 | |
| 2.0 | 103 | 174 | 289 | 451 | 677 | 922 | |
| 2.5 | 125 | 211 | 350 | 546 | 821 | 1110 | |
Note: The conveying capacity is calculated under the following conditions: material bulk density of 1T/m³, conveying inclination angle of 0°–7°, and material stacking angle of 30°.
TD75 Universal Fixed Belt Conveyor Power Selection Table (Unit: kW)
| Length (m) | 15m | 30m | 45m | 60m | 100m | 150m | 200m | 300m | |
|---|---|---|---|---|---|---|---|---|---|
| Tape width (mm) | 500mm | 1.0 | 1.3 | 1.7 | 2.0 | 3.2 | 4.6 | 8.0 | 11.5 |
| 650mm | 1.3 | 1.9 | 2.4 | 2.8 | 4.6 | 9.2 | 11.5 | 16.0 | |
| 800mm | 1.9 | 2.9 | 3.6 | 4.3 | 9.7 | 14.0 | 17.5 | 24.3 | |
Frequently Asked Questions (FAQ)
What makes this conveyor belt suitable for salt production?
It uses food-grade PU herringbone rubber for the belt and structural frames made of corrosion-resistant 304/316 stainless steel or galvanized steel, preventing salt corrosion and contamination.
What is the maximum conveying inclination angle?
The conveyor supports an inclination angle of up to ≤ 30°, making it highly suitable for climbing applications between processing stages.
Can the conveyor dimensions be customized?
Yes, conveyor lengths range from 3m to 300m and bandwidths from 500mm to 1400mm, with full customization available to fit your specific factory layout.
How does the equipment prevent salt leakage and material loss?
The conveyor is engineered with anti-deviation rollers, specialized salt leakage prevention barriers, and an integrated cleaning device with a removable collection trough.
Can this belt conveyor integrate with other salt washing processing machinery?
Yes, it is designed for integration with upstream and downstream equipment including salt washing machines, dehydration screens, and packaging units.
