Explore EquipmentPTFE Lined Y Strainers: Hydrodynamic Integrity & Permeation Defense
In modern corrosive chemical synthesis, particulate ingestion constitutes over 65% of catastrophic pump seal and control valve failures. A PTFE lined Y strainer provides the definitive barrier against process particulate contamination without compromising anti-corrosive chemical inertness.
Virgin Fluoropolymer Polymerization
We deploy high-molecular-weight virgin Polytetrafluoroethylene (PTFE) and melt-processable PFA resin free from recycled regrinds or plasticizers. The resulting lining exhibits a crystalline non-porous structure impervious to halogenation, nitration, and universal acid attacks up to 200°C.
- Lining thickness strictly maintained between 3.5mm and 6.0mm
- Zero chemical reactivity with boiling aqua regia, bromine, and HF
- Hydrophobic surface finish minimizes boundary layer flow drag
Dovetail Mechanical Anchorage
Differential thermal expansion between carbon steel (12×10⁻⁶/K) and PTFE (100–150×10⁻⁶/K) is the leading cause of lining collapse. Our pressure castings incorporate precision-machined internal dovetail slots and welded anchoring meshes that lock the fluoropolymer mechanically.
- Full vacuum resistance down to absolute zero (0.01 mbar)
- Prevents liner detachment under dynamic pulsating pressure
- Eliminates thermal cycle liner puckering and stress cracks
100% Spark-Testing Integrity
Every single PTFE lined strainer body and internal filter cartridge undergoes stringent non-destructive electrostatic pinhole testing per NACE SP0188 and ASTM D5162 standards. Zero micro-porosity is strictly verified prior to hydrostatic hydrotesting.
- High-frequency spark testing up to 20,000 Volts DC
- Flange face sealing serrations checked for absolute flatness
- Helium mass-spectrometry leak detection available upon request
| Nominal Diameter (DN) | Pressure Class (ASME / DIN) | Liner Material | Filter Basket Spec | Spark Test Voltage | Operating Temp Range |
|---|---|---|---|---|---|
| DN15 – DN50 (1/2" – 2") | Class 150 / PN10 / PN16 | Virgin PTFE / Molded PFA | PTFE perforated / ETFE 60-120 mesh | 15 kV DC continuous | -30°C to +180°C (-22°F to +356°F) |
| DN65 – DN150 (2-1/2" – 6") | Class 150 / Class 300 / PN16 | Compression Molded PTFE | Dual-layer ETFE + Hastelloy cage | 20 kV DC continuous | -30°C to +200°C (-22°F to +392°F) |
| DN200 – DN350 (8" – 14") | Class 150 / PN10 / PN16 | Isostatically Molded PTFE | Reinforced PTFE core with Hastelloy-C276 | 20 kV DC continuous | -20°C to +180°C (-4°F to +356°F) |
| DN400+ (16"+ Custom) | Engineered Class 150 | Seamless Transfer PFA/PTFE | Structured fluoropolymer cartridge | 25 kV DC continuous | -20°C to +160°C (-4°F to +320°F) |
Why Source PTFE Lined Y Strainers from Weifang, China?
Located in the Binhai Economic and Technological Development Zone of Weifang, Shandong, our manufacturing base bridges high-capacity precision metallurgy with world-class fluoropolymer molding clusters.
Vertical Foundry & Casting Integration
Unlike assembly shops relying on outsourced shells, our ecosystem controls casting from molten state to finished machining. Utilizing ASTM A395 ductile iron, WCB carbon steel, and CF8M stainless steel, our automated shell molds achieve zero blowholes and uniform wall thickness for high-pressure containment.
State-of-the-Art Isostatic Pressing
Complex geometries inside Y-strainer branch angles often suffer from uneven resin compaction during manual paste wrapping. We leverage computerized cold isostatic pressing and automated ram sintering ovens, assuring identical density (2.16 - 2.18 g/cm³) across the most intricate flow diversion branches.
Unbeatable Total Cost of Ownership (TCO)
By producing our own lined valves, expansion joints, and EPC heavy equipment right in Weifang, our customers bypass third-party trading markups. Global engineering clients benefit from 30% to 45% capital expenditure savings while securing EN 10204 Type 3.1 certification and traceable MTR records.
Emerging Trends in Fluoropolymer Pipeline Filtration
As global chemical processing leans towards decarbonization, zero-discharge closed-loop refining, and micro-contaminant elimination, lined strainers are transforming from passive mechanical screens into intelligent process monitors.
Smart IoT Differential Pressure ($\Delta P$) Telemetry
Unmonitored strainer clogging leads to pump cavitation, impeller degradation, and violent flow surges. Next-generation installations feature integrated tantalum or Hastelloy diaphragm seal transmitters ported into the PTFE blind flange cover. Real-time differential pressure telemetry connects directly to DCS or SCADA networks via 4-20mA HART or WirelessHART protocols, triggering automated purge cycles prior to reaching critical clogging thresholds ($\Delta P > 0.08 \text{ MPa}$).
Modified Fluoropolymer Anti-Permeation Chemistry
Low-molecular gases such as dry chlorine ($Cl_2$), hydrogen fluoride ($HF$), and gaseous hydrochloric acid ($HCl$) exhibit subtle molecular permeation through conventional PTFE matrices under sustained thermal pressure. The industry transition toward ultra-dense Modified PTFE (TFM) and conductive PFA blends achieves up to a 60% reduction in gas permeability, preventing subsurface steel casing oxidation while dissipating dangerous static electricity in hydrocarbon-solvent transport.
Mission-Critical Scenarios for PTFE Lined Y Strainers
Where exotic nickel alloys (Hastelloy, Inconel, Monel) face pitting or rapid corrosion, lined strainers provide absolute immunity across diverse process streams.
Bromine Extraction & Acid Hydrolysis
Bromine blow-out processes utilize acidified brine laden with chlorine and dissolved sulfur compounds. PTFE lined Y-strainers safeguard chlorine injection pumps and absorption towers by capturing suspended sand crystals and crystallized salts without degrading under elemental bromine ($Br_2$).
Chlor-Alkali & Caustic-Chlorine Scrubbing
In membrane-cell chlor-alkali facilities, cell-liquor caustic soda (32-50% NaOH) and saturated wet chlorine streams cause severe galvanic stress cracking in metallics. Lined strainers placed ahead of recirculation heat exchangers arrest scale particles, preserving expensive plate exchanger gaskets.
Lithium Battery Precursor Hydrometallurgy
Refining nickel sulfate ($NiSO_4$), cobalt sulfate ($CoSO_4$), and lithium hydroxide ($LiOH$) requires stripping trace leach tailings from high-temperature acidic solutions. Virgin PTFE linings prevent trace heavy metal contamination, ensuring absolute battery-grade chemical purity.
Systemic Engineering: From Strainer to Full Plant Operation
Weifang Ruitu Automation Equipment Co., Ltd. does not merely manufacture isolated pipeline fittings. As an experienced EPC contractor, we harmonize the complete fluid-solid separation and thermal processing flowline.
Upstream Separation & Centrifugal Dewatering Integration
In salt purification and magnesium chloride recovery, crude brines pass through our high-capacity Double Stage Piston Pusher Centrifuges and Salt Washing Lines. PTFE lined Y strainers act as immediate downstream polishing guardians, preventing carryover crusts from scoring downstream high-pressure centrifugal boiler feeds and PTFE-lined control valves.
Thermal & Drying Train Synchronization
Liquid calcium chloride and chemical brine drying involve massive caloric exchange powered by our Industrial Hot Air Furnaces. By integrating fluoropolymer lined strainers alongside PTFE Lined Pipes and PTFE Lined Reducers, our turn-key EPC lines eliminate thermal-shock induced flange weeping, delivering verified zero-downtime chemical crystallization.
International Technical Auditing & QA Inspection Protocols
When global engineering EPC contractors procure fluoropolymer equipment from China, adhering to standardized inspection criteria is mandatory to ensure project longevity and safety compliance.
Dimensional & Flange Compatibility
Body castings must conform to ASME B16.42 for ductile iron or ASME B16.5 / B16.34 for carbon steel. Face-to-face dimensions must comply with DIN EN 558 series 1 or ASME B16.10, ensuring seamless field bolt-up without pipe stress.
Pressure & Spark Test Verification
Every valve must have hydrostatic shell testing conducted at 1.5× PN rating and pneumatic seat tests at 1.1× PN. Post-machining spark testing must confirm zero pinholes at 14–20 kV DC over 100% of wetted surfaces per ASTM F1545 specifications.
Material Traceability (EN 10204 3.1)
Every production heat number on the ductile iron or WCB shell must match heat-analysis spectral reports. Certified resin data sheets verify virgin polymer source, melt flow index (MFI), and tensile strength meeting ASTM D4894 requirements.
Engineering Answers for Global Plant Operators
Direct technical clarifications on installation geometry, mesh micron options, chemical compatibilities, and maintenance best practices.
How do PTFE lined Y strainers compare against Hastelloy C-276 or Titanium strainers?
While Hastelloy C-276 and Titanium offer high structural strength, they remain susceptible to localized pitting, crevice corrosion, or transgranular stress cracking in environments with fluctuating pH, high chlorine gas concentrations, or trace fluorides. PTFE is chemically inert across 0–14 pH at up to 200°C. Economically, a ductile iron or WCB carbon steel body lined with virgin PTFE provides identical or superior chemical resistance at roughly 40% to 60% lower capital acquisition cost compared to solid exotic alloy cast fabrications.
What filter screen designs and mesh sizes are available for corrosive service?
Our standard internal filter baskets are manufactured with a heavy-gauge perforated virgin PTFE core reinforced by an ETFE, PFA, or PVDF outer mesh sleeve, available in ratings from 20 mesh (840 microns) up to 200 mesh (74 microns). For high-pressure differential processes or pulsating slurry applications, we supply dual-cage assemblies featuring a Hastelloy C-276 or Titanium structural skeleton encapsulated completely within welded fluoropolymer film.
Can PTFE lined Y strainers be installed in vertical flow piping lines?
Yes, but vertical orientation requires that the flow direction is downwards. When flow is vertically downward, particulates are naturally guided by flow velocity and gravity into the angled strainer basket branch. Vertical upward flow is strictly avoided because collected debris would fall back down the pipeline once flow stops, causing backflow blockages or falling into upstream isolation valves.
What is the maximum allowable pressure drop ($\Delta P$) before filter screen cleaning?
Under clean operating conditions, pressure drop across the strainer typically ranges between 0.005 MPa and 0.02 MPa (0.7 to 2.9 psi). Cleaning or blowdown must be performed when the differential pressure reaches 0.05 MPa to 0.08 MPa (7.25 to 11.6 psi). Operating with a differential pressure exceeding 0.1 MPa (14.5 psi) risks mechanically collapsing the internal filter cage or extruding particulate matter through the mesh weave.
How does Weifang Ruitu prevent liner detachment during full vacuum conditions?
Vacuum collapse is prevented through precision-engineered mechanical anchorage. During the casting stage of our valve and strainer bodies, dovetailed annular grooves are machined along the bore and branch cavities. When PTFE is isostatically pressed and sintered, the fluoropolymer flows into these recesses, locking the lining permanently to the metal substrate. Every unit is rated for full vacuum (0.1 bar absolute) across its rated temperature envelope.
What documentation and quality certifications accompany each shipment?
Every export shipment from our Weifang facility includes a comprehensive documentation binder: EN 10204 Type 3.1 Material Test Reports (MTR) covering chemical and mechanical properties of the pressure casting; 100% Spark Test certificates (15–20 kV DC); Hydrostatic shell & seat pressure inspection logs; Coating thickness verification; and raw fluoropolymer batch certificates validating virgin resin origin.
Complementary Corrosion-Resistant & Process Equipment
Expand your industrial chemical reliability with our proven range of lined tanks, valves, crushers, and multi-stage purification equipment.

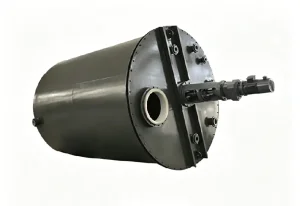

China PO-lined Mixing Tank Factories, Products
Explore Equipment
China PTFE Lined Four-Way Factories, Products
Explore Equipment
Custom Hammer Crusher Products, Service
Explore Equipment
Custom Magnesium Chloride Equipment Product, Service
Explore Equipment
China PTFE-Lined Electric Butterfly Valve Factory, Service
Explore Equipment
Custom Salt Washing Line Product, Products
Explore Equipment

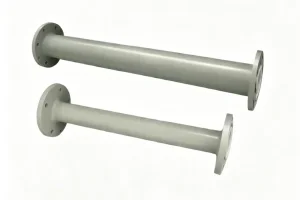

China PTFE Lined Pipe Products, Service
