Product Description
Core Overview

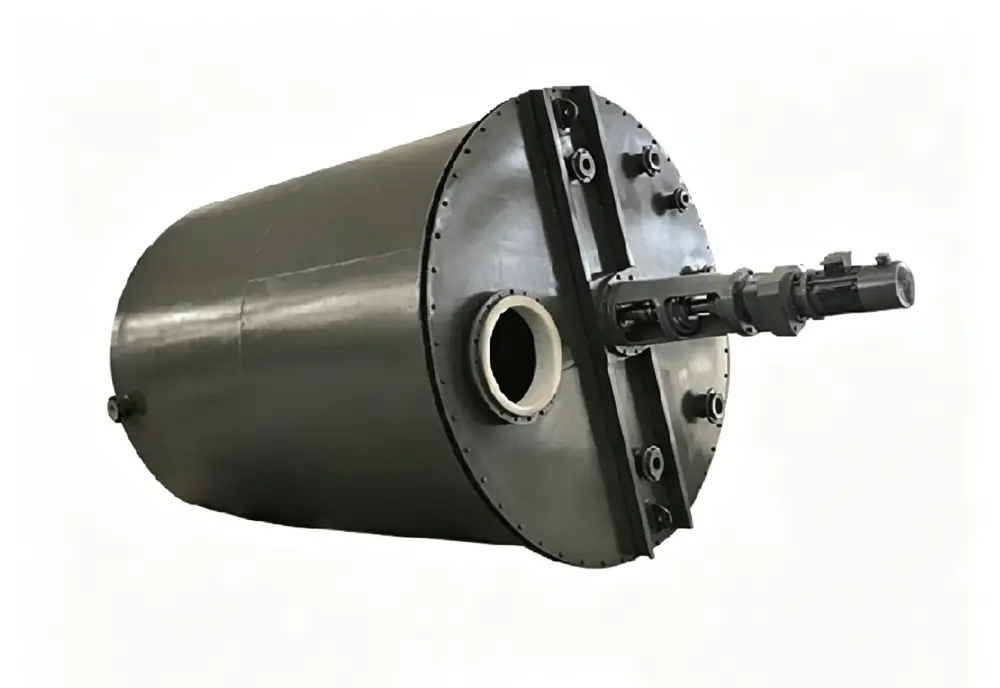

Our PO lined mixing tank is a specialized solution designed for industries requiring corrosion-resistant and contamination-free mixing processes.
Constructed with a robust carbon steel outer shell and a seamless PO (Polyolefin) inner lining, it ensures compatibility with a wide range of chemicals, acids, and alkaline substances. Ideal for applications in chemical processing, pharmaceutical manufacturing, food and beverage production, and water treatment, this tank provides a reliable environment for blending, dissolving, and suspending materials. Its advanced mixing system, equipped with high-efficiency impellers, guarantees uniform and consistent results, meeting the strictest quality standards of modern industries.
Suitable for stirring, reacting and storing corrosive acid, alkali and chemical liquids in chemical, environmental protection and pharmaceutical industries.
It features excellent corrosion and wear resistance, seamless lining, stable operation, easy maintenance, strong sealing performance and long service life.
Specifications & Dimensions
| Parameter | Specification |
|---|---|
| Capacity Range | 500L - 50,000L |
| Outer Material | Carbon steel (Q235B) with epoxy coating |
| Inner Lining | 8mm - 15mm thick seamless PO lining |
| Mixing Power | 0.75kW - 75kW (customizable based on capacity) |
| Impeller Type | Turbine, propeller, or anchor type (optional) |
| Operating Temperature | -20°C to 80°C |
| Operating Pressure | Atmospheric pressure (customizable for pressurized systems) |
| Inlet/Outlet Size | DN50 - DN200 (flange connection) |
| Overall Height (500L) | 2200mm |
| Diameter (500L) | 1000mm |
Core Advantages
The PO lining offers superior resistance to a broad spectrum of corrosive substances, extending the tank's service life and reducing maintenance costs.
The non-porous PO surface prevents bacterial growth and material adhesion, ensuring product purity, which is critical for pharmaceutical and food industries.
We provide tailored solutions, including different capacities, impeller types, and additional features like heating/cooling jackets, to meet specific process requirements.
The high-performance mixing system minimizes energy consumption while maximizing mixing efficiency, leading to lower operational costs.
The smooth inner lining simplifies cleaning, and the durable outer shell withstands harsh industrial environments, ensuring long-term reliability.
Frequently Asked Questions (FAQ)
The seamless PO (Polyolefin) lining provides exceptional resistance against strong acids, alkaline substances, salts, and various aggressive chemicals commonly found in chemical processing, wastewater treatment, and pharmaceutical sectors.
The standard operating temperature range is between -20°C and 80°C. For applications near upper limits, constant monitoring is recommended to ensure optimal lining durability.
Yes. Mixing systems are fully customizable. Depending on liquid viscosity and blending requirements, impellers can be selected as turbine, propeller, or anchor types, with motor power varying between 0.75kW and 75kW.
The internal polyolefin layer features a 8mm to 15mm thick seamless lining structure, eliminating welded joints in the plastic layer to avoid seam failure, corrosion penetrations, and micro-cracking.
Yes. The seamless non-porous finish prevents media accumulation, reduces residue clinging, and inhibits microbial growth, ensuring high hygienic standards and straightforward cleaning procedures.
