China PTFE-Lined Electric Butterfly Valve Factory, Service

1 / 1

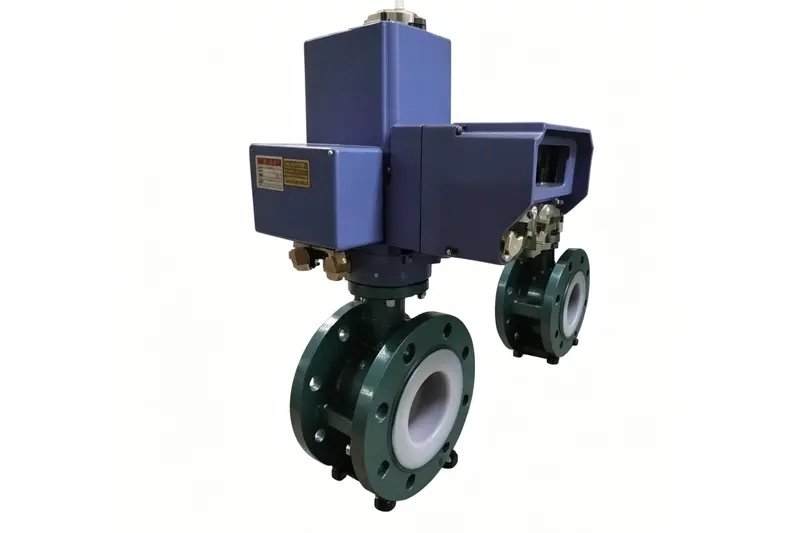

China PTFE-Lined Electric Butterfly Valve Factory, Service

Brand: Ruitu Automation

Product origin: China

Equipment Type: Butterfly valve driven by an electric actuator, with PTFE lining on the valve body and disc, supporting remote control function.

Application: Used for on-off control of fluids in pipelines. Automatic switching can be realized via the electric device, making it suitable for conveying highly corrosive media that require remote operation or frequent opening and closing.

Advantages: The PTFE lining provides strong corrosion resistance and is compatible with various corrosive media. The electric drive enables convenient operation and automatic control, improving work efficiency. The butterfly valve structure itself features low flow resistance and low loss in fluid transportation.

Send Inquiry

Product Description

Core Overview

The PTFE-lined electric butterfly valve is a high-performance flow control device designed for rigorous industrial applications involving corrosive media. It combines a robust cast steel or stainless steel body with a seamless virgin PTFE lining and disc, ensuring complete isolation of the metal components from aggressive fluids. Integrated with a precision electric actuator, it offers automated remote control for opening, closing, and flow regulation. This valve is ideal for chemical processing, pharmaceutical manufacturing, water treatment, and power generation industries where reliability, corrosion resistance, and precise automation are critical.

Specifications & Dimensions

Technical Parameters

Parameter	Specification
Body Material	WCB Carbon Steel, CF8/CF8M Stainless Steel
Lining/Disc Material	Virgin PTFE (Polytetrafluoroethylene)
Actuator Type	Electric (On-Off or Modulating)
Voltage Options	AC 220V, AC 380V, DC 24V (Customizable)
Nominal Diameter (DN)	DN50 – DN600
Pressure Rating	PN1.0, PN1.6 MPa
Temperature Range	-20°C to +180°C
Connection Type	Wafer, Lug, Flange (ANSI, DIN, JIS, GB)
Protection Class	IP67 / IP68
Control Signal	4-20mA, 0-10V (for modulating type)

Dimensional Data Table

Nominal Size (DN)	Length (L) mm	Height (H) mm	Width (W) mm	Flange Diameter (D) mm	Weight (kg)
DN50	43	280	160	165	8.5
DN65	46	310	180	185	11.0
DN80	64	340	200	200	14.5
DN100	52	380	220	220	19.0
DN125	56	420	250	250	25.0
DN150	56	460	280	285	32.0
DN200	60	550	340	340	48.0
DN250	68	630	400	395	65.0
DN300	78	720	460	445	85.0
DN350	78	800	520	505	110.0
DN400	102	880	580	565	140.0

Core Advantages

Exceptional Corrosion Resistance

Full PTFE lining protects against strong acids, alkalis, and solvents, ensuring long-term durability in harsh chemical environments.

Precise Electric Control

Automated actuator allows for accurate flow regulation and remote operation, integrating seamlessly with PLC/DCS systems.

Zero Leakage Design

Tight sealing between the PTFE disc and seat ensures bubble-tight shut-off, preventing media loss and contamination.

Low Operating Torque

Optimized disc design and PTFE’s low friction coefficient reduce wear on the actuator and extend service life.

Versatile Installation

Compact wafer/lug design fits between standard flanges, saving space and simplifying maintenance in complex piping networks.

Frequently Asked Questions (FAQ)

Q What media are suitable for a PTFE-lined electric butterfly valve?

Due to the chemically inert nature of virgin PTFE, this valve is suitable for handling aggressive media including concentrated acids (hydrochloric, sulfuric, nitric), strong alkalis, organic solvents, and high-purity pharmaceutical fluids.

Q What is the difference between On-Off and Modulating electric actuators?

An On-Off actuator is designed strictly for fully opening or fully closing the valve, whereas a modulating actuator accepts a 4-20mA or 0-10V control signal to adjust the disc to intermediate angles for precise flow rate regulation.

Q What are the primary advantages of virgin PTFE over standard elastomer linings?

Virgin PTFE provides significantly superior chemical resistance, broader temperature stability (-20°C to +180°C), and lower friction compared to standard elastomers like EPDM or NBR, minimizing media sticking and prolonging service intervals.

Q What flange standards are compatible with these valves?

The wafer and lug valve bodies are engineered to clamp universally between standard pipeline flanges adhering to ANSI Class 150, DIN PN10/PN16, JIS 10K, and GB standards.

Q Can the electric actuator be operated manually during an electrical power failure?

Yes, the electric actuator comes standard with a declutchable manual handwheel or override mechanism, allowing operators to manually open or close the valve safely during power disruptions or emergency maintenance.

Q What ingress protection rating does the actuator offer?

The standard enclosure rating is IP67, providing complete protection against dust and ingress under water immersion, with an optional upgrade to IP68 for continuous underwater or severe outdoor conditions.
