China PTFE Lined Elbow Product, Products

1 / 1

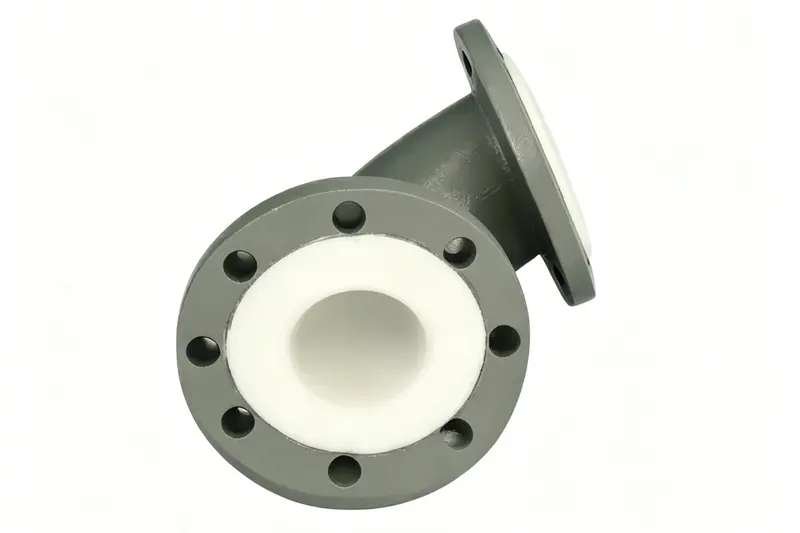

China PTFE Lined Elbow Product, Products

Brand: Ruitu Automation

Product origin: China

Type: Pipe direction changing fitting with flanged connections, lined with white polytetrafluoroethylene (PTFE).

Application: Used to change the direction of pipelines and suitable for conveying highly corrosive media.

Advantages: The PTFE lining resists highly corrosive substances such as strong acids and strong bases, greatly extending the service life of the equipment. The outer metal structure ensures structural strength, and the flanged design facilitates installation and disassembly.

Send Inquiry

Product Description

Core Overview

PTFE Lined Elbow is a corrosion-resistant pipe fitting widely used in chemical, pharmaceutical, metallurgical, and environmental protection industries. It features a PTFE lining inside a carbon steel or stainless steel shell, combining the corrosion resistance of PTFE with the mechanical strength of metal, making it ideal for transporting corrosive media such as acids, alkalis, salts, and organic solvents.

Basic Specifications

Item	Details
Product Name	PTFE Lined Elbow
Standards	HG/T 21562, ASME B16.5, GB/T 12224
Nominal Diameter	DN15 – DN300 (1/2" – 12")
Pressure Class	PN10, PN16, PN25, PN40 / Class 150, Class 300
Elbow Angle	90°, 45° (30°, 60° available on request)
Shell Material	Carbon Steel (Q235B, 20#), Stainless Steel (304, 316L)
Lining Material	Polytetrafluoroethylene (PTFE)
Lining Thickness	2.0–6.0 mm (standard: 3.0–4.0 mm)
Connection	Flanged (RF, FM)
Working Temperature	-20°C to +180°C
Suitable Medium	Strong acids, alkalis, salts, organic solvents and other corrosive media
Inspection	Hydrostatic test, Spark leakage test (5 kV)
Application	Chemical, petrochemical, pharmaceutical, metallurgy, environmental protection, fluorine chemical industry

Typical Dimensions Table (90° Long Radius Elbow)

Nominal Diameter DN	Outer Diameter (mm)	Center-to-End (mm)	Flange OD (mm)	Bolt Circle Diameter (mm)	Lining Thickness (mm)
15	21.3	40	90	60	3.0
20	26.9	50	100	70	3.0
25	33.7	65	115	80	3.5
32	42.4	80	140	100	3.5
40	48.3	100	150	110	3.5
50	60.3	125	165	125	4.0
65	76.1	160	185	145	4.0
80	88.9	190	200	160	4.0
100	114.3	250	220	180	4.5
125	139.7	310	250	210	4.5
150	168.3	380	285	240	5.0
200	219.1	500	340	295	5.5
250	273.0	630	405	355	6.0
300	323.9	750	460	410	6.0

Typical Dimensions Table (45° Long Radius Elbow)

Nominal Diameter DN	Outer Diameter (mm)	Center-to-End (mm)	Flange OD (mm)	Bolt Circle Diameter (mm)	Lining Thickness (mm)
15	21.3	20	90	60	3.0
20	26.9	25	100	70	3.0
25	33.7	32	115	80	3.5
32	42.4	40	140	100	3.5
40	48.3	50	150	110	3.5
50	60.3	62	165	125	4.0
65	76.1	80	185	145	4.0
80	88.9	95	200	160	4.0
100	114.3	125	220	180	4.5
150	168.3	190	285	240	5.0
200	219.1	250	340	295	5.5

Core Advantages

Advantage Category	Specific Content
Corrosion Resistance	PTFE lining can resist corrosion from most acids, alkalis, and organic solvents, with a corrosion resistance coefficient of up to 0.99
Low Friction	The friction coefficient of PTFE is only 0.04, which reduces the resistance of fluid transportation and saves energy
Temperature Resistance	Can work stably in the temperature range of -200℃ to 260℃, suitable for high and low-temperature environments
Non-Stick Property	The surface of PTFE is non-stick, which prevents medium deposition and facilitates cleaning
Long Service Life	The service life is 3-5 times longer than that of ordinary pipe fittings, reducing maintenance costs

Frequently Asked Questions (FAQ)

QWhat is the main function of a PTFE lined elbow?

It combines the high mechanical strength of a metal shell with the superior chemical inertness of PTFE lining to safely convey highly corrosive fluids like acids and alkalis.

QWhat are the standard angles available for PTFE lined elbows?

Standard configurations are 90° and 45° elbows, while custom angles such as 30° and 60° can be manufactured upon request.

QWhat inspection methods are performed to ensure quality?

Each elbow undergoes strict hydrostatic testing for structural integrity and a 5 kV spark leakage test to ensure complete lining continuity without pinholes.

QWhat materials are used for the outer shell?

The shell is typically fabricated from carbon steel (Q235B, 20#) or stainless steel (304, 316L) depending on operating and environmental demands.

QHow does the non-stick property of PTFE benefit pipeline systems?

The ultra-smooth, non-stick surface prevents medium scaling and sediment accumulation, which minimizes flow resistance and simplifies pipeline cleaning.
