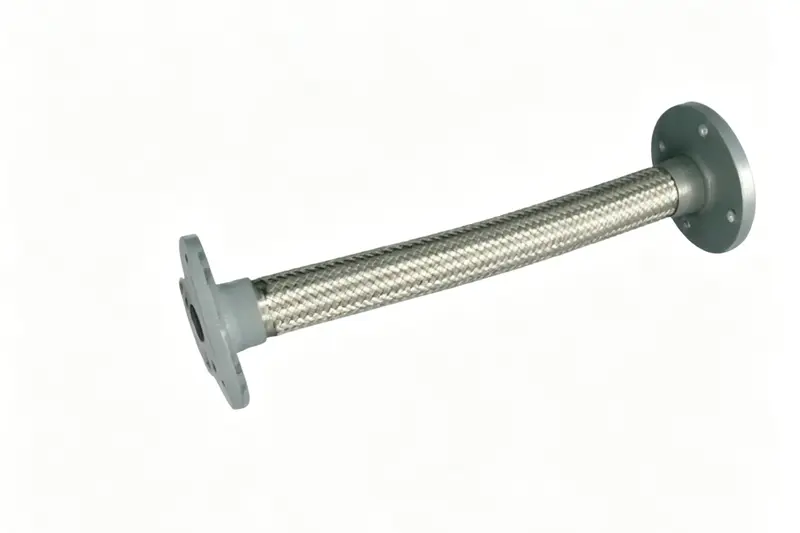

China PTFE-Lined Flexible Hose Factories, Service

Brand: Ruitu Automation

Product origin: China

Type: Belongs to industrial pipeline accessories, a flexible pipeline component lined with polytetrafluoroethylene (PTFE).

Application: Can be used for pipeline connections in industries such as chemical engineering, petroleum, pharmaceuticals and others. It is used to convey corrosive media including strong acids, strong alkalis and organic solvents, and can also be applied in fluid transportation scenarios requiring high temperature resistance and high pressure resistance.

Advantages: The internal polytetrafluoroethylene (PTFE) lining provides excellent corrosion resistance and can withstand the erosion of most chemical substances. It is flexible and bendable, enabling more flexible installation and layout. It features a wide operating temperature range and can work stably in environments from -200°C to 260°C. The smooth inner wall creates low resistance during fluid delivery.

Send Inquiry

Product Description

Core Overview

PTFE-lined flexible hoses are high-performance fluid transfer solutions designed for applications requiring both corrosion resistance and flexibility. Featuring a seamless inner tube made of virgin Polytetrafluoroethylene (PTFE) and reinforced with high-tensile stainless steel wire braid, these hoses excel in handling aggressive chemicals, high temperatures, and dynamic movements. They are widely used in chemical processing, pharmaceutical manufacturing, food and beverage industries, and semiconductor fabrication where purity and durability are paramount. The unique construction allows the hose to absorb vibration, misalignment, and thermal expansion while maintaining a leak-proof barrier against corrosive media.

Basic Specifications

Item	Details
Product Name	PTFE (Polytetrafluoroethylene) Lined Flexible Hose
Executive Standards	HG/T 21562, ASME B16.5, GB/T 12224, SAE J517
Nominal Diameter	DN15 – DN200 (1/2" – 8")
Pressure Rating	PN10, PN16, PN25 / Class 150, Class 300
Structure Type	Smooth bore straight hose, Convoluted flexible hose, Stainless steel braided reinforced hose
Reinforcement Material	304/316L Stainless Steel Braided Layer, Carbon Steel Flange & Fitting
Lining Material	Polytetrafluoroethylene (PTFE), PFA optional for high-temperature service
Lining Thickness	1.5–5.0 mm (Standard: 2.0–3.0 mm)
Connection Type	Flanged Connection (RF Raised Face), NPT/BSPT Threaded Connection, Quick Disconnect Coupling (optional)
Standard Length	1000mm / 2000mm / 3000mm / 5000mm (Custom length available)
Operating Temperature	-20℃ to +180℃ (-4°F to +356°F)
Core Performance	Excellent corrosion resistance, low friction coefficient, anti-aging, absorb pipeline vibration & displacement
Applicable Medium	Strong acids, strong alkalis, strong oxits, organic solvents and other highly corrosive media
Factory Inspection	Hydrostatic pressure test, Spark pinhole leakage test (5kV), Air tightness test, Pressure cycle fatigue test
Main Applications	Chemical industry, petrochemical, pharmaceutical, metallurgy, environmental protection, fluorine chemical, sewage treatment industries

Typical Dimensions Table

Nominal Diameter DN	Nominal Bore (NB)	Hose Inner Diameter (mm)	Hose Outer Diameter (mm)	Working Pressure (MPa)	Burst Pressure (MPa)	Minimum Bending Radius (mm)	Standard Length (mm)	Flange Outer Diameter (mm)	Bolt Circle Diameter (mm)	Lining Thickness (mm)
15	1/2"	15	24	1.6	6.4	120	1000/2000/3000	90	60	2.0
20	3/4"	20	30	1.6	6.4	150	1000/2000/3000	100	70	2.0
25	1"	25	38	1.6	6.4	180	1000/2000/3000	115	80	2.5
32	1 1/4"	32	48	1.6	6.4	220	1000/2000/3000	140	100	2.5
40	1 1/2"	40	58	1.6	6.4	260	1000/2000/3000	150	110	2.5
50	2"	50	70	1.6	6.4	300	1000/2000/3000	165	125	3.0
65	2 1/2"	65	86	1.0	4.0	380	1000/2000/3000	185	145	3.0
80	3"	80	102	1.0	4.0	450	1000/2000/3000	200	160	3.0
100	4"	100	120	1.0	4.0	550	1000/2000/3000	220	180	3.5
125	5"	125	148	0.6	2.4	700	1000/2000/3000	250	210	3.5
150	6"	150	180	0.6	2.4	850	1000/2000/3000	285	240	4.0
200	8"	200	240	0.4	1.6	1100	1000/2000/3000	340	295	5.0

Core Advantages

Universal Chemical Resistance

Inert to nearly all industrial chemicals, acids, alkalis, and solvents, ensuring zero contamination and long service life.

Extreme Temperature Tolerance

Maintains flexibility and integrity from cryogenic temperatures (-70°C) up to high heat (+260°C), suitable for steam and hot oil lines.

High Flexibility & Vibration Damping

Effectively absorbs pipeline vibration, thermal expansion, and mechanical misalignment, reducing stress on connected equipment.

Non-Stick & Low Friction

The smooth PTFE bore prevents material buildup, scaling, and clogging, ensuring consistent flow rates and easy cleaning (CIP/SIP compatible).

High Purity & Cleanliness

Made from virgin PTFE, meeting FDA, USP Class VI, and 3A sanitary standards, ideal for sensitive pharmaceutical and food processes.

Durability Under Pressure

Stainless steel braiding provides robust burst pressure resistance and protects the PTFE core from external mechanical damage.

Frequently Asked Questions

What media can PTFE-lined flexible hoses handle?

PTFE-lined hoses are chemically inert to nearly all industrial fluids, including strong acids (hydrochloric, sulfuric, nitric), aggressive alkalis, organic solvents, and high-purity pharmaceutical media.

What is the difference between smooth bore and convoluted PTFE hoses?

Smooth bore hoses offer optimal flow rates, minimal pressure drops, and easier cleaning (ideal for high-purity processes), whereas convoluted hoses offer significantly higher flexibility and smaller bend radii for tight routing.

How do I choose the correct end connection for the hose?

End connections depend on your piping infrastructure and process requirements. Common options include ASME/DIN flanged connections (RF), threaded joints (NPT/BSPT), and sanitary quick-disconnect clamps.

Can these hoses handle continuous dynamic movement and vibration?

Yes, the combination of virgin PTFE and outer stainless steel braiding is engineered specifically to absorb pipeline vibration, thermal expansion, and mechanical misalignment from pumps and process equipment.

What quality tests are conducted before dispatch?

Standard quality verification includes 100% hydrostatic pressure testing, spark pinhole leakage testing (up to 5kV) to ensure lining integrity, pneumatic air tightness checks, and pressure cycle fatigue testing.
