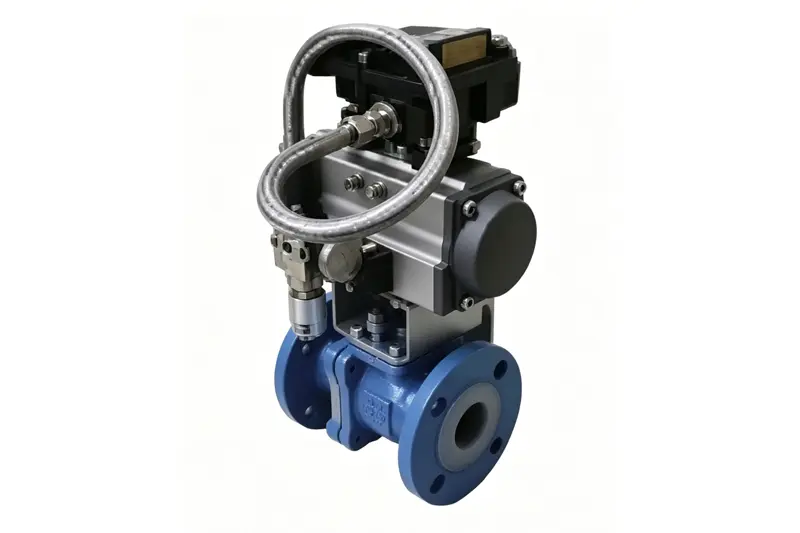

China PTFE-Lined Pneumatic Ball Valve Factories, Service

Brand: Ruitu Automation

Product origin: China

Equipment Type‌: A ball valve driven by a pneumatic actuator, with PTFE lining on both the valve body and ball core. It controls the on/off of the valve by rotating the ball core through an air source.

Purpose‌: Used for controlling the on/off of fluid in pipelines. The pneumatic drive enables automated control, suitable for scenarios involving the transportation of strongly corrosive media where rapid opening/closing and automated control are required.

Advantages‌: The PTFE lining is resistant to strong corrosion and can withstand substances such as strong acids and strong alkalis; the ball valve structure has extremely low flow resistance, ensuring smooth fluid transportation; the pneumatic drive allows automated control, making operation convenient.

Send Inquiry

Product Description

Core Overview

The PTFE-lined pneumatic ball valve is a high-performance automated quarter-turn valve engineered for critical shut-off and control applications in corrosive fluid handling systems. Featuring a robust carbon steel or stainless steel body with a complete virgin PTFE lining and an encapsulated PTFE-coated ball, it ensures full isolation from aggressive chemicals. Integrated with a reliable pneumatic actuator, this valve provides rapid, reliable operation for chemical processing, pharmaceutical, and water treatment industries where automation, safety, and zero leakage are paramount.

Specifications & Dimensions

Technical Parameters

Parameter	Specification
Body Material	WCB Carbon Steel, CF8/CF8M Stainless Steel
Lining Material	Virgin PTFE (Polytetrafluoroethylene)
Ball/Seat Material	PTFE-Coated Stainless Steel / Reinforced PTFE
Actuator Type	Double-acting / Spring-return Pneumatic
Nominal Diameter (DN)	DN15 – DN300
Pressure Rating	PN1.6, PN2.5, PN4.0 MPa
Temperature Range	-20°C to +180°C
Air Supply	0.4 – 0.8 MPa
Connection Type	Flange, Threaded, Welded
Leakage Class	ANSI/FCI 70-2 Class VI

Dimensional Data (Flanged)

Size (DN)	Face-to-Face (mm)	Height (mm)	Flange Dia. (mm)	Weight (kg)
DN15	130	200	95	5.5
DN25	160	240	115	9.0
DN50	230	300	165	20.0
DN80	310	380	200	35.0
DN100	350	420	220	48.0
DN150	480	550	285	80.0
DN200	600	680	340	125.0

Core Advantages

Advantage	Description
Full-Bore Design	Provides flow with minimal pressure drop, ideal for high-flow applications.
Rapid Automation	Quarter-turn pneumatic actuation enables fast response for emergency shutdowns and process control.
Complete Corrosion Resistance	Full PTFE lining and coated ball withstand aggressive acids, alkalis, and solvents.
Bubble-Tight Sealing	Precision PTFE seats ensure zero leakage, meeting strict environmental and safety standards.
Low Maintenance	Simple design and non-stick surfaces reduce wear and maintenance requirements.

Frequently Asked Questions

Q1 What fluids and media are suitable for this PTFE-lined pneumatic ball valve?

Due to its virgin PTFE lining and encapsulated ball, the valve is engineered for highly aggressive and corrosive media, including strong acids, alkalis, organic solvents, and high-purity fluids used in chemical and pharmaceutical plants.

Q2 What actuator options are available for automated operation?

The valve integrates pneumatic actuation available in both Double-acting and Spring-return (single-acting/fail-safe) configurations, operating under a standard air supply pressure of 0.4 to 0.8 MPa.

Q3 What sealing standard and leakage rate does the valve meet?

The valve delivers bubble-tight sealing certified to ANSI/FCI 70-2 Class VI standards, ensuring absolute shut-off and zero leakage in hazardous fluid environments.

Q4 What are the working temperature and pressure limits?

The valve operates within a temperature range of -20°C to +180°C and supports pressure classes including PN1.6, PN2.5, and PN4.0 MPa across nominal sizes from DN15 to DN300.

Q5 What end connections can be selected for piping integration?

Standard flanged connections are available along with threaded and welded options to fit diverse pipeline requirements and international flange standards.

Q6 Why choose a full-bore PTFE-lined valve over reduced-bore options?

A full-bore design ensures that internal flow passages match the nominal pipe size, delivering high flow rates with virtually zero flow restriction and minimal pressure drop.
