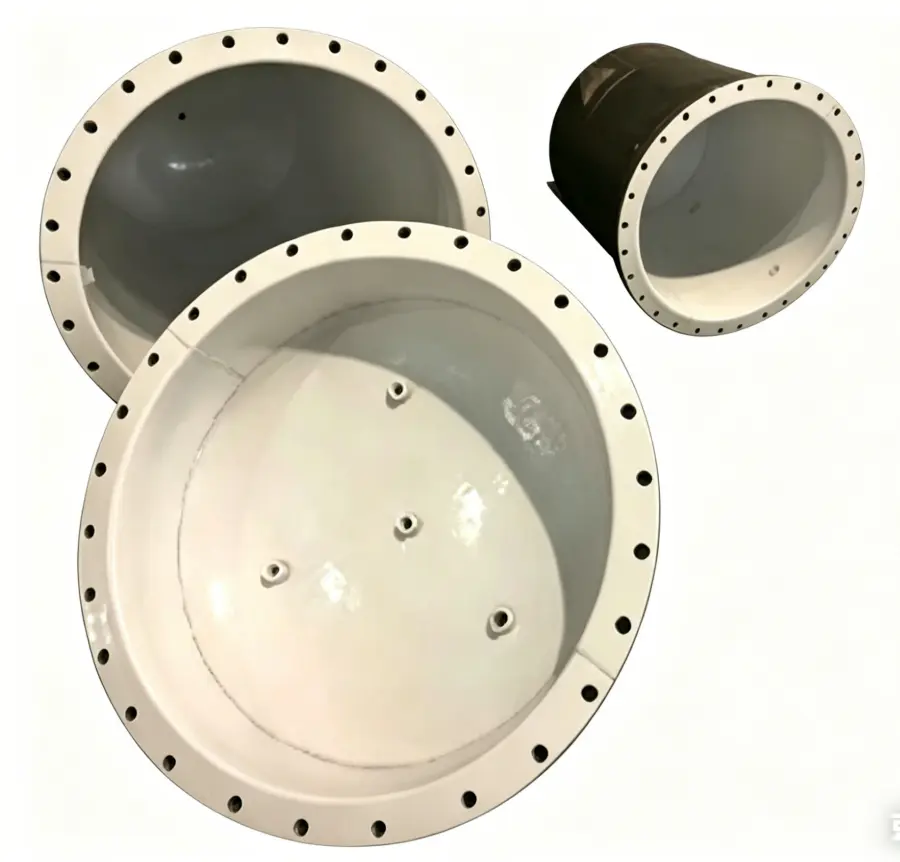

Custom PTFE-lined Dosing Tank Product, Service

1 / 1

Custom PTFE-lined Dosing Tank Product, Service

Brand: Ruitu Automation

Origin: China

Equipment Type

This is a PTFE-lined dosing tank with integrated fluorine lining. All medium contact parts are anti-corrosive, equipped with a precision dropping and control structure.

Send Inquiry

Product Description

Core Overview

Our PTFE-lined dosing tank is a high-performance storage and dispensing solution engineered for handling corrosive, acidic, or alkaline fluids in chemical, pharmaceutical, and food processing industries. The tank features a robust carbon steel outer shell combined with a seamless PTFE inner lining, ensuring exceptional resistance to chemical degradation while maintaining structural stability. It is designed for precise controlled dosing, with integrated inlet/outlet ports and optional level monitoring systems to meet strict process requirements.

Application

Mainly used in chemical, fine chemical and pharmaceutical industries for quantitative dropping, buffering and temporary storage of corrosive chemical liquids.

Advantages

It has great acid and alkali resistance, accurate feeding, good sealing performance, stable operation, easy cleaning and durable service life.

Specifications & Dimensions

Parameter	Specification
Capacity Range	50L - 5000L
Outer Material	Carbon steel (Q235B) or stainless steel (304/316L)
Inner Lining	Seamless PTFE, thickness 2mm - 5mm
Operating Temperature	-20°C to 150°C
Operating Pressure	Atmospheric to 0.6MPa
Connection Type	Flange (DN25 - DN100) or threaded
Dosing Accuracy	±1% (with optional metering pump)
Overall Height (1000L)	2200mm
Diameter (1000L)	1200mm

Core Advantages

Advantage 01

Unmatched Chemical Resistance

The PTFE lining is inert to almost all chemicals, eliminating contamination risks and extending service life.

Advantage 02

Precision Dosing Control

Optimized tank geometry and optional level sensors ensure accurate fluid dispensing, reducing waste and improving process efficiency.

Advantage 03

Durable & Low-Maintenance

The heavy-duty outer shell resists physical impact, while the non-stick PTFE surface prevents residue buildup, minimizing cleaning efforts.

Advantage 04

Customizable Design

Available in various capacities, with options for heating jackets, agitators, and different connection types to suit specific application needs.

Frequently Asked Questions (FAQ)

Q: What types of fluids can this PTFE-lined dosing tank handle?

The tank is designed for corrosive, acidic, or alkaline chemical liquids across chemical, pharmaceutical, and food processing applications.

Q: What is the operating temperature and pressure tolerance?

It operates within an operating temperature range of -20°C to 150°C and accommodates pressures from atmospheric up to 0.6MPa.

Q: What capacity ranges and dimensions are available?

Standard capacity ranges from 50L to 5000L. For reference, a 1000L unit features a diameter of 1200mm and an overall height of 2200mm.

Q: How accurate is the dosing operation?

When paired with an optional metering pump, the system achieves a precision dosing accuracy of ±1%.

Q: What materials are used for the outer shell and inner lining?

The outer shell is constructed from carbon steel (Q235B) or stainless steel (304/316L), while the interior features a seamless 2mm to 5mm thick PTFE lining.

Q: Can the dosing tank be customized for specific configurations?

Yes, customization options include heating jackets, agitators, level monitoring sensors, and various flange (DN25 - DN100) or threaded connection types.
