Custom PTFE-Lined Filter Factory, Service
Product Description
Core Overview

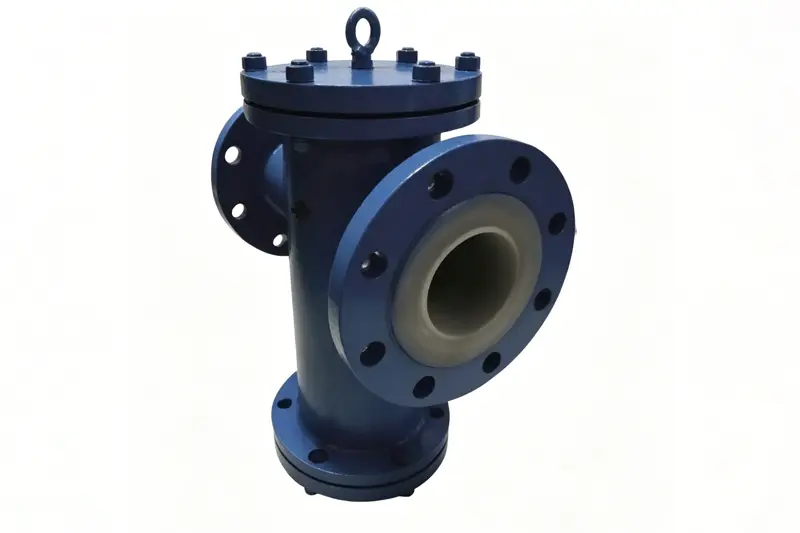

The PTFE-lined filter is a robust filtration solution engineered for handling highly corrosive and abrasive media in industrial pipelines. Constructed with a durable cast steel or stainless steel body fully lined with virgin Polytetrafluoroethylene (PTFE), it ensures complete isolation of metal components from aggressive fluids such as strong acids, alkalis, and organic solvents. Available in various configurations including Y-strainers and basket filters, this product effectively removes solid particulates to protect downstream equipment like pumps and valves. It is widely used in chemical processing, pharmaceutical manufacturing, water treatment, and power generation industries where reliability, corrosion resistance, and fluid purity are paramount.
Specifications & Dimensions
| Parameter | Specification |
|---|---|
| Body Material | WCB Carbon Steel, CF8/CF8M Stainless Steel |
| Lining Material | Virgin PTFE (Polytetrafluoroethylene) |
| Screen Material | SS304/316 Mesh with PTFE Coating |
| Nominal Diameter (DN) | DN15 – DN300 (Customizable) |
| Pressure Rating | PN1.0, PN1.6, PN2.5 MPa; Class 150/300 |
| Temperature Range | -20°C to +180°C |
| Filtration Accuracy | 20–80 mesh (Customizable) |
| Connection Type | Flange (ANSI, DIN, JIS, GB), Threaded |
| Flow Direction | Horizontal or Vertical (Depending on type) |
| Nominal Size (DN) | Length (L) mm | Height (H) mm | Width (W) mm | Flange Diameter (D) mm | Weight (kg) |
|---|---|---|---|---|---|
| DN15 | 130 | 95 | 60 | 95 | 1.2 |
| DN25 | 160 | 115 | 80 | 115 | 1.8 |
| DN50 | 230 | 160 | 115 | 165 | 4.5 |
| DN80 | 310 | 210 | 155 | 200 | 8.5 |
| DN100 | 350 | 240 | 180 | 220 | 12.0 |
| DN150 | 450 | 300 | 240 | 285 | 22.0 |
| DN200 | 550 | 360 | 300 | 340 | 35.0 |
Core Advantages
| Advantage | Description |
|---|---|
| Superior Corrosion Resistance | PTFE lining protects against virtually all industrial chemicals, extending equipment life in harsh environments. |
| High Filtration Efficiency | Precision mesh screens effectively remove particulates, preventing clogging and damage to downstream components. |
| Low Pressure Drop | Optimized flow path design ensures smooth dynamics with minimal resistance, maintaining system efficiency. |
| Easy Maintenance | Removable cover allows for quick screen cleaning or replacement without dismantling the entire pipeline. |
| Versatile Application | Suitable for both horizontal and vertical installations, adapting to diverse piping configurations and space constraints. |
Frequently Asked Questions
Due to the chemical inertness of virgin PTFE, this filter is capable of handling strong acids, alkalis, aggressive organic solvents, and abrasive industrial slurries while preventing chemical corrosion of the metallic body.
The standard allowable operating temperature range is -20°C to +180°C, maintaining reliable mechanical strength and chemical stability under standard continuous operations.
Yes. While standard filtration accuracy spans between 20 and 80 mesh, custom mesh ratings and reinforced screen constructions are available based on specific particulate size requirements.
The unit is built with a detachable cover assembly. Operators can easily open the blind flange or bonnet to extract, inspect, clean, or replace the internal screen without unbolting the entire pipeline.
Flanged connections are fully adaptable to international standards including ANSI (Class 150/300), DIN (PN10/PN16/PN25), JIS, and GB standards to integrate smoothly into any existing piping system.
