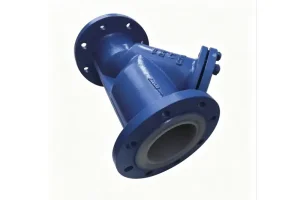

Custom PTFE-Lined Y-Strainer Factories

Custom PTFE-Lined Y-Strainer Factories, Impurity Filtration for Evaporator Feeds

Explore Equipment Details →

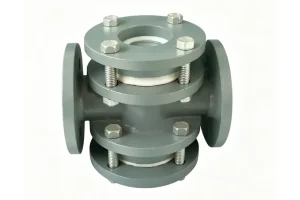

Custom PTFE Lined Sight Glass Pot Factories

Custom PTFE Lined Sight Glass Pot Factories, Visual In-Line Monitoring Equipment

Explore Equipment Details →
China Anhydrous Calcium Chloride Drying Equipment Factory

China Anhydrous Calcium Chloride Drying Equipment Factory, Thermal Crystallization Systems

Explore Equipment Details →
China PTFE-Lined Flexible Hose Factories

China PTFE-Lined Flexible Hose Factories, Vibration Absorption & Corrosive Service

Explore Equipment Details →
Engineering Whitepaper · Thermodynamic Overview

Circulation Evaporator Engineering in China: The Modern Standard

Balancing thermodynamic enthalpy, boundary-layer fluid dynamics, and metallurgy to conquer scaling, foaming, and extreme chloride corrosion across the processing industries.

In the landscape of modern chemical process engineering, industrial wastewater concentration, and inorganic salt crystallization, the Circulation Evaporator stands as the ultimate thermal unit operation. Whether handling hypersaline bitter brines, lithium extraction raffinate, multi-component industrial effluents, or caustic chlor-alkali streams, evaporators are confronted with three fundamental operational hazards: rapid fouling (crusting/scaling) along tubular heat-exchange boundaries, severe stress corrosion cracking (SCC) caused by concentrated halide ions, and excessive parasitic thermal energy consumption.

China's manufacturing transformation has radically elevated the fabrication of circulation evaporators. Centered in world-class industrial chemical corridors such as the Binhai Economic and Technological Development Zone in Weifang, Shandong, Chinese factories have moved far beyond basic steel rolling. Today, Chinese engineering bases integrate precision computational fluid dynamics (CFD) modeling, robotic plasma welding for reactive transition metals (Titanium Gr. 2/7/12, Hastelloy C-276, Monel, Duplex 2205/2507), and full modular skid pre-fabrication under ASME Section VIII and European Pressure Equipment Directive (PED) protocols.

28,000 m²
Integrated Fabrication Base
≤ 22 kWh/t
MVR Ultra-Low Power Baseline
99.5%
Chemical Crystal Recovery Rate
100% NDT
X-Ray / Ultrasonic Weld Inspection

Information Gain & Scientific Principle: In contrast to standard falling film units where boiling occurs inside the tubes—causing premature dry-out and severe wall scaling when processing saturated solutions—a heavy-duty Forced Circulation (FC) Evaporator suppresses boiling inside the heat exchanger via hydrostatic head and rapid axial pump velocities (1.8 to 3.5 m/s). Vapor flash occurs exclusively inside the flash chamber/vapor separator, preserving heat exchange efficiency over thousands of continuous running hours.

Thermodynamic Architecture

Forced Circulation vs. Natural Circulation (Calandria)

Selecting the ideal circulation evaporator geometry based on rheology, crystal growth kinetics, and boiling point elevation (BPE).

Forced Circulation (FC) Crystallizers

Equipped with low-head, high-discharge axial-flow circulation pumps, our FC systems maintain controlled shear rates and high linear velocities across tube bundles. Specially engineered for sodium chloride (NaCl), sodium sulfate (Na2SO4), and calcium chloride (CaCl2) saturation points where slurry solids reach up to 35% vol/vol.

Thermosiphon Natural Circulation

Driven by the density differential between the two-phase boiling liquid inside the calandria tubes and the non-boiling recirculated liquid downcomer. Ideal for non-crystallizing, low-viscosity solutions requiring concentration prior to secondary crystallization stages, minimizing parasitic pump power consumption.

Oslo Growth-Type Suspension Evaporators

Designed for processes where uniform crystal grain size is critical. Oslo circulation systems create a classified fluidized suspension bed where supersaturation is gently dissipated on pre-existing crystals, preventing secondary nucleation and delivering coarse, free-flowing, high-purity industrial salts.

Manufacturing Competitiveness

Why Global Chemical Leaders Partner with Chinese Factories

From advanced metallurgy procurement to standardized robotic assembly: breaking down the structural advantages of Tier-1 Chinese chemical equipment manufacturing.

Complete Coastal Chemical Ecosystem

Located in Shandong’s premier salt-chemical hub, our factory operates within immediate reach of world-class titanium smelters, heavy forging plants, fluoropolymer processors, and port logistics, shaving weeks off component lead times.

Exotic Metallurgy & Welding Rigor

Full argon-chamber automated orbital welding for Titanium (TA1, TA2, TA9), Hastelloy (C-276, C-22), and Nickel 200/201. Strict adherence to ferrite testing, intergranular corrosion testing (ASTM A262), and positive material identification (PMI).

Modular Skid Fabrication

Up to 80% of piping, instrumentation, pumps, valves, and structural frameworks are integrated and pre-commissioned in-house on modular skids. This slashes on-site civil and assembly time at overseas destinations by up to 50%.

Total Cost of Ownership (TCO)

Significant capital expenditure (CAPEX) advantages combined with state-of-the-art thermal recompression technology ensure that global plants achieve full investment payback within 12 to 24 months of commercial operation.

Technology Horizon & Decarbonization

Technological Megatrends: MVR, Smart IoT, & ZLD

Transforming energy-intensive thermal concentration through Mechanical Vapor Recompression (MVR), automated anti-fouling intelligence, and closed-loop environmental stewardship.

Thermal Technology Scheme Live Steam Input Electrical Power Consumption Cooling Water Demand Lifecycle CAPEX/OPEX Balance
Single-Effect Evaporator 1.10 - 1.20 t/t vapor Minimal (< 2 kWh/t) Very High (Direct Condensation) Low CAPEX / High OPEX
Three-Effect MEE (Forward Feed) 0.35 - 0.42 t/t vapor 3 - 6 kWh/t Moderate (35% of Single-Effect) Balanced Medium Line
Five-Effect MEE with Thermal Recompression (TVR) 0.18 - 0.24 t/t vapor 4 - 8 kWh/t Low (20% of Single-Effect) Optimized Steam Sites
MVR (Centrifugal Steam Compressor) + FC 0.01 - 0.03 t/t (Start-up only) 18 - 28 kWh/t water removed Zero during continuous run Highest Energy Efficiency

1. Mechanical Vapor Recompression (MVR) Integration: The global shift toward net-zero manufacturing makes traditional high-steam multi-effect evaporators increasingly cost-prohibitive in markets where live boiler steam is expensive or environmentally regulated. In modern Chinese circulation evaporator plants, centrifugal or Roots-type vapor compressors boost the enthalpy, temperature, and pressure of the flashed vapor, feeding it directly back as the heating medium for the exchanger bundle. This eliminates 95% of live steam consumption and avoids the requirement for large-scale external cooling water towers.

2. AI-Driven Smart Fouling Diagnostics & CIP Automation: Through integrated differential pressure sensing, acoustic emission sensors, and mass flow tracking, our smart circulation control systems predict boundary-layer scaling before thermal transfer rates collapse. The automated Clean-In-Place (CIP) cycle injects targeted organic complexing agents or diluted acids, dissolving scale with zero operator exposure and minimal downtime.

Application Engineering

Empirical Applications Across Severe Chemical Environments

Tailoring flow paths, metallurgy, and residence times to specific crystalline systems, aggressive halogens, and zero-discharge mandates.

Bromine & Halogen Bitter Brine Concentration

Handling subterranean seawater and salt lake brines enriched with Bromide (Br−), Magnesium (Mg2+), and Chlorine (Cl−). Utilizes Grade 2 Titanium or heavy PTFE fluoropolymer linings to eliminate pitting and crevice corrosion under high-temperature acidic operational conditions.

Chlor-Alkali & Caustic Soda Upgrading

Concentrating diaphragm or membrane electrolytic caustic soda (NaOH) from 32% to 50% purity, precipitating granular sodium chloride simultaneously. Nickel-lined contact surfaces and specialized non-clogging centrifugal impellers withstand intense alkaline stress cracking.

Lithium Battery Black Mass & Hydrometallurgy

Recycling ternary cathode materials via high-purity crystallization of battery-grade Lithium Carbonate (Li2CO3), Lithium Hydroxide (LiOH), and Nickel/Cobalt/Manganese sulfates. Complete system isolation preserves ultra-pure product integrity without cross-contamination.

Coal Chemical & High-Salinity ZLD

Treating coal gasification reverse osmosis (RO) rejects and coal-to-liquids wastewater. Combines softening pretreatment with fractional circulation crystallizers to partition sodium sulfate and sodium chloride into saleable industrial by-products.

Desalination Brine Valorization

Transforming seawater reverse osmosis concentrate into solid technical salt through thermal concentration, eliminating marine brine discharge impacts while monetizing clean distillate water recovery up to 98.5%.

Pharmaceutical & Fine Chemical Raffinate

Crystallizing organic and inorganic amino acid hydrochlorides and synthetic intermediates under low-temperature vacuum evaporation regimes to prevent thermal degradation of active molecular matrices.

Engineering, Procurement & Construction

Macro Industry EPC Methodology & Execution Framework

Single-point contractual accountability eliminating boundary interface risks between process design, mechanical fabrication, and overseas field commissioning.

Phase 01: Brine Rheology & Pilot Simulation

Comprehensive ICP-OES and titration analysis of client feedstocks. Benchtop thermodynamic simulation determining solubility curves, boiling point elevation (BPE), and crystal morphology transitions.

Phase 02: 3D Plant Layout & CFD Modeling

Complete plant integration using AVEVA PDMS and ANSYS Fluent. Fluid dynamic simulations verify equal flow distribution across thousands of calandria tubes, eliminating stagnation dead-zones and localized dry spots.

Phase 03: Fabrication & Stringent FAT

In-house manufacturing across our 28,000 m² coastal workshops. Full Factory Acceptance Testing (FAT) with hydraulic pressure verification, vacuum helium leak rate detection, and dynamic balancing of circulation impellers.

Phase 04: Global Commissioning & Buy-Back

Veteran process commissioning engineers deployed on-site for line start-up, distributed control system (DCS) tuning, and local workforce operational certification, backed by optional output buy-back agreements.

Procurement Assurance & Compliance

Global Enterprise Procurement Checklist & QA Protocols

How international engineering procurement teams audit Chinese circulation evaporator suppliers to ensure total structural compliance and risk mitigation.

Code Certification & Stamping

Mandate ASME Section VIII Division 1 ('U' Stamp) certification for pressure vessels and European Union Pressure Equipment Directive (PED 2014/68/EU Module H/H1 CE mark). Verify factory welder performance qualification records (WPQR/PQR) compliant with ASME Section IX.

NDT & Metallurgy Traceability

Ensure 100% Non-Destructive Testing (NDT) via Radiographic (RT) and Ultrasonic (UT) testing on all longitudinal and circumferential vessel welds. Original mill test certificates (EN 10204 Type 3.1) with complete heat number traceability for every plate, pipe, and flange.

Hydraulic & Vapor Tightness Proof

Perform hydrostatic pressure testing at 1.3 to 1.5 times the maximum allowable working pressure (MAWP) with demineralized water (chloride content < 25 ppm to prevent stress corrosion). Helium mass spectrometry testing for vacuum crystallizer bodies to guarantee absolute seal integrity.

Technical Decision Support

Frequently Asked Questions (FAQ) for Engineering Teams

Direct engineering answers addressing fluid dynamics, anti-scaling measures, energy budgeting, and overseas support.

Why choose a Forced Circulation (FC) evaporator over a Falling Film system for high-salinity brines?
Falling film evaporators rely on a delicate liquid boundary layer flowing down the inner wall of vertical tubes. When handling supersaturated or crystallizing solutions, the boiling occurring inside the tubes causes rapid localized dry-out, thermal baking, and severe crust formation that chokes the tubes. A Forced Circulation (FC) system suppresses boiling inside the heat exchanger using hydrostatic pressure and high axial fluid velocities (typically 2.0 to 3.0 m/s). Boiling and vapor flashing occur exclusively downstream in the flash separator vessel, keeping the tubular surfaces clean and allowing non-stop operation even with slurry crystal concentrations reaching 30-35%.
What materials of construction (MOC) are specified for aggressive chloride and acidic bromide streams?
For neutral or weakly alkaline sodium chloride brines, Duplex 2205 or Super Duplex 2507 provides excellent resistance to pitting and chloride stress corrosion cracking (SCC) at an optimal capital cost. When processing acidic halogens, concentrated calcium chloride, or bromine bitterns with low pH and free halogens, we specify Titanium Grade 2 (commercial pure), Titanium Grade 7 (Pd-alloyed for severe reducing acids), Hastelloy C-276, or specialized carbon-steel vessels lined with isostatically pressed PTFE/PFA to achieve multi-decade corrosion immunity.
How does Mechanical Vapor Recompression (MVR) reduce operating expenditures compared to live steam?
In an MVR system, the secondary vapor produced during evaporation (which contains latent heat of roughly 2260 kJ/kg) is not discarded into a cooling condenser. Instead, it is mechanically compressed using a high-efficiency centrifugal or Roots blower. The compression raises the vapor's saturation temperature and pressure by 8°C to 18°C. This compressed vapor is then reintroduced as the heating medium into the calandria. Consequently, the only continuous energy input is the electrical power powering the compressor motor (18-28 kWh per metric ton of water evaporated), slashing operational energy costs by 60% to 80% compared with traditional steam-heated multi-effect evaporation.
What process parameters are essential for sizing a circulation evaporator plant?
A precise engineering design requires six fundamental operational parameters: (1) Complete ionic chemical composition of the feed brine (TDS, specific cation/anion concentrations, and total organic carbon TOC); (2) Desired feed rate and target daily evaporation capacity (e.g., m³/day or metric tons/hour); (3) Feed temperature and available on-site utilities (live steam pressure, electrical power capacity, and cooling water supply); (4) Boiling point elevation (BPE) profile across target concentration stages; (5) Crystal size distribution requirements for the crystallized solid product; and (6) Local environmental discharge and zero-liquid-discharge (ZLD) regulations.
How do your factory systems control crystal nucleation and prevent fine dust formation?
We implement Oslo-type fluidized suspension beds or Draft-Tube-Baffle (DTB) crystallizer geometries. By regulating the circulation flow rate, supersaturation levels are controlled within the metastable zone. The crystal slurry is continuously circulated through a dense suspension bed where solute deposition occurs on existing crystal seed surfaces rather than forming spontaneous micro-nuclei. Controlled internal elutriation legs and tangential hydrocyclone classifiers further separate fine crystals, recycling them into the dissolving loop to ensure finished salt crystals reach a coarse, uniform, easily dewatered particle size (300-800 μm).
What international quality standards and testing certifications accompany export shipments?
Every evaporator skid and pressure vessel fabricated in our Weifang base is manufactured in strict compliance with ISO 9001/14001/45001 management standards. For international projects, we fabricate and stamp according to ASME Section VIII Div. 1 ('U' Stamp) and the European Pressure Equipment Directive (PED 2014/68/EU CE mark). Comprehensive Quality Assurance Dossiers include EN 10204 Type 3.1 material certificates, radiographic (RT)/ultrasonic (UT) weld test reports, pickling and passivation verification, dynamic impeller balance test certificates, and factory acceptance test (FAT) operational run data.
What is the expected lead time for a complete modular circulation evaporator system?
Standard skid-mounted circulation evaporator units (5 to 25 t/h evaporation rate) typically require 14 to 20 weeks from frozen process design freeze and P&ID sign-off to factory gate completion. Large-scale multi-effect or heavy-tonnage MVR plants (over 50 t/h) with exotic metallurgy (Titanium/Hastelloy) generally require 24 to 32 weeks, including complete in-shop mechanical pre-assembly, piping spool fabrication, hydrostatic testing, and pre-commissioning validation before modular containerized packing.
How does Weifang Ruitu support overseas installation, commissioning, and long-term maintenance?
We provide comprehensive turnkey lifecycle support. Our multidisciplinary field engineering teams (mechanical, chemical, and DCS automation specialists) are dispatched globally to guide civil foundation anchoring, piping tie-ins, electrical wiring, and cold/hot commissioning. We conduct rigorous on-site training for plant operators until the facility consistently achieves design capacity and product purity targets. Additionally, our global parts warehouse provides fast-track dispatch of critical spare parts, while remote IoT modules provide real-time diagnostic support.
Ancillary Equipment Portfolio

Refined Salt Screening, Valves & Mechanical Handling

High-performance conveying, classification, dosing, and PTFE-lined flow control valves completing the full chemical crystallizer process loop.

Custom Screening And Packaging Machinery for Refined Salt

Custom Screening And Packaging Machinery, Multi-Level Vibrating Screen For Refined Salt, Automatic Packaging Machine

Explore Equipment Details →

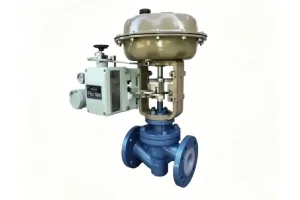

Custom PTFE-Lined Control Valve Product
