High-Throughput Continuous Reaction & Fluid Handling Units
Precision-fabricated lined containment, valve manifolds, and high-efficiency mechanical extraction hardware calibrated for zero unplanned downtime in continuous chemical cycles.
Thermodynamic Balance & Severe Corrosive Fluid Scaling
Operating chemical processing units at immense scale requires transcending simple dimensional extrapolation. In systems involving halogen extraction, concentrated halide salts, and extreme pH ranges, material limits and thermal transfer boundaries encounter non-linear operational drag. As processing volumes cross 50,000 metric tons per annum, standard alloy behaviors fail under stress-corrosion cracking and localized pitting.
At Weifang Ruitu Automation Equipment Co., Ltd. (operating from a 28,000 m² heavy manufacturing facility in Weifang’s coastal Binhai Economic and Technological Development Zone), our large-capacity factory models utilize computational fluid dynamics (CFD) and rigorous finite element analysis (FEA). By merging thick-section seamless fluoropolymer rotational linings (PTFE, PFA, ETFE, PO, and PP) with heavy carbon steel structural envelopes, we isolate ultra-corrosive halide media while providing the structural integrity required for large dynamic and seismic loads.
- Isostatic Compression Molding: Ensuring uniform PTFE lining density up to 6mm thickness without internal voids, resisting negative pressures up to full vacuum (-0.1 MPa).
- Advanced Hydraulic Profiling: Fluid extraction columns and counter-current scrubbers engineered with lower pressure drop, minimizing parasitic pumping power by up to 23%.
- Automated Enthalpy Reclamation: Integrating multi-effect evaporation and mechanical vapor recompression (MVR) across calcium and magnesium chloride drying loops.
Validated Process Scalability Benchmarks
Our engineering matrix validates that scaling up plant capacity reduces specific energy consumption per metric ton of pure output by up to 34% compared to modular distributed trains, while simplifying central DCS telemetry.
End-to-End Solutions Across Core Halide Extraction Sectors
From underground bitter brine fields to desalination brine effluents, our high-capacity architectures unlock high-value chemical revenue streams while meeting zero-liquid-discharge (ZLD) mandates.
Industrial Bromine Extraction Complexes
Processing high-volume bittern, oilfield co-produced waters, and reverse osmosis concentrates. Our turnkey EPC solutions incorporate blowing-out towers, sulfur dioxide (SO₂) absorption columns, and multi-stage chlorine displacement reactors built with proprietary fluoropolymer linings and titanium/tantalum internals to handle wet chlorine and elemental bromine vapor.

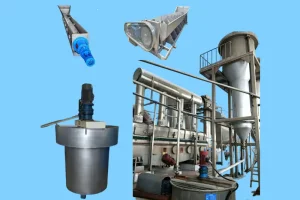

Refined & Industrial Salt Washing Plants
Upgrading raw sea salt, rock salt, and lake salt into pharmaceutical, food-grade, or chlor-alkali feedstock. We integrate raw salt slurry feeding, non-destructive hydro-crushing double-roll pulverizers, counter-current elutriation washers, continuous centrifugal drying, and computerized screening and bagging stations operating at up to 120 tons per hour.
Calcium Chloride Flaking & Granulation
Transforming hydrochloric acid waste by-products and limestone into high-purity anhydrous or dihydrate calcium chloride (74% to 94%). Featuring specialized forced-circulation evaporators, rotary flakers with chilled interior water films, and fluid-bed granulators paired with our high-efficiency industrial hot air furnaces.
High-Purity Magnesium Chemical Refining
Recovering magnesium chloride hexahydrate and anhydrous flake from potassium fertilizer mother liquor and concentrated bittern. Our multi-effect vacuum crystallization trains operate with controlled supersaturation to eliminate fine crystallite dusting and deliver clear, high-bulk-density flakes for metallurgy and dust suppression.
Engineered Fluoropolymer Fluidics & Piping

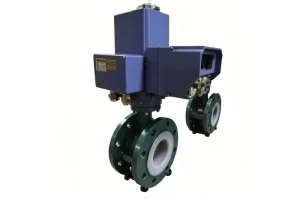

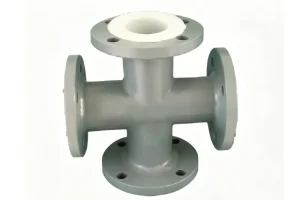

Custom-fabricated PTFE-lined carbon-steel expansion joints, multi-port four-ways, and intelligent actuated butterfly valves engineered to withstand dynamic line stresses, thermal cycling (-40°C to +200°C), and pulsating hydraulic hammer in hazardous chemical containment zones.
China Factory 4.0: Cluster Integration & Cost Efficiency
Situated in Weifang, Shandong Province—the core hub of Asian marine chemical and brine extraction industries—Ruitu Automation leverages an integrated regional supply ecosystem. Our proximity to prime raw-material suppliers, certified pressure-vessel plate rolling mills, and precision fluoropolymer compounding specialists allows us to compress production schedules by 40% compared to Western European or North American fabrication shops.
Factory 4.0 at Ruitu is not merely a buzzword; it is embedded into our workshop floors. Heavy robotic submerged-arc welding machines fabricate large-diameter pressure vessel shells up to 4.5 meters in diameter. Digital hydrostatic testing benches, automated CNC multi-axis milling of valve components, and automated continuous lining sintering ovens eliminate operator-dependent variabilities.
Every processing line item undergoes rigorous non-destructive evaluation (NDE), including 100% radiographic weld testing, ultrasonic wall thickness auditing, and 25 kV electrostatic spark testing across every square millimeter of lined fluoropolymer to ensure zero pinhole defects prior to sea export packaging.
Total Cost of Ownership (TCO) Reduction Matrix
Predictive Digital Twins & Intelligent Process Automation
Transitioning large-capacity chemical plants into self-optimizing, adaptive production units powered by real-time IoT sensors and machine learning algorithms.
Digital Twin Process Simulation
Integration of thermodynamic model twins running alongside the central PLC/SCADA. Incoming brine salinity and temperature fluctuations trigger automated mass-balance adjustments, setting precise reagent dosing, steam flow, and blower RPM before chemical equilibriums drift.
Smart Vibration & Wear Telemetry

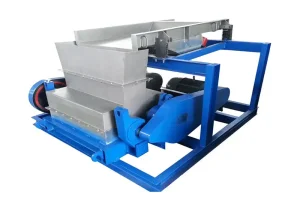

Continuous condition monitoring deployed on heavy double-roll crushers, vibrating multi-deck classifiers, and slurry pumps. Tri-axial vibration sensors and acoustic emission telemetry flag bearing fatigue or roller mantle wear weeks before micro-cracking precipitates failure.
Closed-Loop Zero Emissions (ZLD)
Future-proofed designs targeting 100% recycling of waste mother liquors. Incorporating advanced electrodialysis reversal (EDR) and low-temperature crystallization loops to eliminate environmental leaching liabilities in compliance with global ISO 14001 sustainability targets.
Engineering Compliance, International Standards & On-Site EPC Delivery
Facilitating rapid regulatory acceptance across North American, European, Middle Eastern, and Southeast Asian industrial jurisdictions.
Pressure Boundary & Code Accreditations
Vessels and columns are designed to ASME Boiler & Pressure Vessel Code (Section VIII, Div. 1/2) and European Pressure Equipment Directive (PED 2014/68/EU), complete with CE markings, EN 10204 3.1 material certifications, and third-party Lloyd's or SGS inspectorate sign-offs.
Food & Pharmaceutical Contact Compliance
For refined sodium chloride and pharmaceutical-grade chloride production, our contact materials utilize virgin, pigment-free PTFE, ultra-high molecular weight polyethylene (UHMW-PE), and electropolished SS316L complying with FDA 21 CFR 177.1550 and EU Framework Regulation (EC) No 1935/2004.
Turnkey On-Site Deployment & Buy-Back
Ruitu provides comprehensive turnkey EPC deployment: geotechnical brine evaluation, civil foundation planning, equipment dispatch, on-site mechanical erection, DCS cold/hot commissioning, and multi-lingual operator training. Optional agreements offer finished product buy-back contracts.
Global Procurement Framework: 6 Essential Inputs
Procuring custom chemical equipment with large processing capacity requires a precise data profile. Incomplete design parameters often cause over-engineering or premature corrosion failures. When consulting with our engineering application desks, preparing the following six parameters streamlines feed-study lead times and budgetary turnaround:
- Complete Raw Feed Ionic Assay: Comprehensive lab breakdown detailing Bromide (Br⁻), Chloride (Cl⁻), Sodium (Na⁺), Magnesium (Mg²⁺), Calcium (Ca²⁺), Sulfate (SO₄²⁻), and total suspended solids (TSS).
- Design Capacity & Duty Factors: Continuous metric tons/hour or cubic meters/day feed rate, accounting for seasonal climatic temperature swings and expected annual operating hours (e.g., 8,000 hrs/year).
- Target Product Quality Standard: Target purity specifications (e.g., CP grade Bromine ≥ 99.7%, Edible Refined Salt GB 5461 / FCC / USP grade, 94% Anhydrous CaCl₂ pellets).
- Site Utility Availability: Steam pressure/enthalpy profile, natural gas or diesel heating sources, industrial power supply (voltage/frequency), and cooling water circulation capacity.
- Jurisdictional Code Classifications: Electrical classification (ATEX, IECEx, or Class I Div 1/2 hazardous gas zones), seismic acceleration coefficients, and wind load criteria.
- Project Implementation Scope: Greenfield complete turnkey EPC delivery versus targeted retrofitting and brownfield throughput debottlenecking.
EPC Delivery Lifecycle Guarantee
We manage multi-discipline engineering interfaces under one roof to protect your capital delivery milestones.
Frequently Asked Questions: Industrial Scale & Processing Systems
Expert answers addressing critical process choices, material durability, energy usage, and turnkey contracting terms.
What raw feedstocks can Ruitu large-capacity bromine extraction systems process?
Our custom extraction towers and reaction systems handle deep underground bitter brine, natural salt lake waters, coastal seawater bittern, oilfield co-produced brackish waters, and industrial waste acids bearing bromide ions. Our process design team begins with a full laboratory water assay. Depending on the bromide concentration (ranging from 150 mg/L to over 5,000 mg/L), we engineer air blowing-out or steam distillation routes paired with SO₂ or alkali absorption loops to maximize yield economics.
How does fluoropolymer lining compare to exotic titanium and Hastelloy alloys in halide processes?
While high nickel alloys (Hastelloy C-276, Inconel) and Titanium Grade 2/7 perform well in neutral or oxidizing halide streams, they remain vulnerable to severe localized pitting and stress-corrosion cracking in mixed acidic halide environments (e.g., wet chlorine combined with hydrobromic acid or hydrochloric acid at elevated temperatures). Our PTFE/PFA steel-lined components offer chemical inertness across the entire pH 0–14 spectrum up to 200°C at roughly 40%–60% lower capital cost than solid exotic superalloys, while providing reliable structural pressure containment.
Can your salt washing equipment satisfy both edible food-grade and chlor-alkali chemical specifications?
Yes. Industrial salt for chlor-alkali membrane electrolysis requires strict elimination of Ca²⁺, Mg²⁺, SO₄²⁻, and insoluble mud to prevent premature membrane fouling. Food-grade table salt demands uniform crystal sizing, whiteness, and food-contact compliance. We tailor the configuration of our hydro-cyclone washers, double-roll crushers, and multi-deck fluid beds to meet your target standard—producing salt meeting Chinese National Standards, FCC, or European Chlor-Alkali specifications.

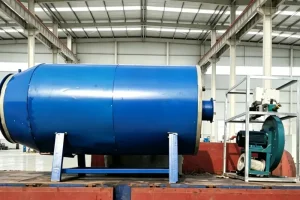

What thermal heat sources can be interfaced with your industrial hot air furnaces and dryers?
Ruitu industrial hot air furnaces support diverse thermal input streams. Based on local site fuel accessibility, we configure high-efficiency burners for natural gas, liquefied petroleum gas (LPG), heavy industrial diesel, pulverized coal, or biomass pellets. For plants with waste thermal assets, we engineer heat exchangers utilizing waste boiler flue gas, low-pressure byproduct steam, or thermal oil loops to minimize operating costs.
What is the scope of Ruitu’s overseas EPC installation and technical commissioning service?
Our EPC contracts cover all project phases: initial process flow modeling and mechanical layout, heavy equipment fabrication in Weifang, maritime export packaging, and site installation by our field engineers. We oversee pipe spading, electrical hookup, DCS loop testing, cold hydrostatic and aerodynamic runs, live feed commissioning, and multi-week operational training for your local technical staff until the plant reliably sustains its rated nameplate capacity.

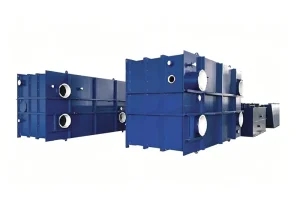

How do you verify the lining integrity of large-scale extraction tanks and vessels prior to dispatch?
Every lined vessel, column, valve, and fitting undergoes stringent quality control at our Weifang workshops. This includes comprehensive dimensional laser scanning, hydrostatic pressure proof testing at 1.5 times the design working pressure, and 100% electrostatic spark testing at up to 25,000 volts across all internal surfaces. This non-destructive test ensures zero microscopic pinholes, cracks, or dielectric voids in the fluoropolymer barrier.
Bulk Material Handling, Mechanical Cracking & Severe Fluids

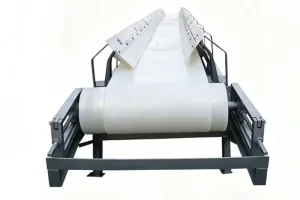

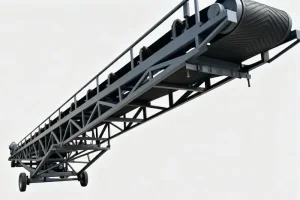

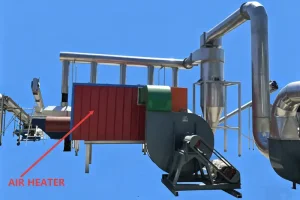

Heavy-duty transport belts, screw feeders, expansion joints, and continuous thermal drying systems built to support non-stop industrial processing.
Initiate Your Facility Feasibility & Sizing Review
Connect directly with our chemical engineering team in Weifang. Submit your brine analysis, target daily metric tonnage, and regional utilities for an initial sizing proposal and budget estimate within 48 business hours.
