What raw materials can Ruitu bromine extraction systems process?

Our bromine extraction systems are designed for seawater, bitter brine, salt lake brine, oilfield water, bromine-bearing industrial wastewater and concentrated brine from desalination plants. The process route is selected only after we review a laboratory analysis of your feed.

Do you supply single machines or complete plants?

Both. We supply individual machines such as salt washers, roller crushers, dryers, vibrating screens, belt conveyors and hot air furnaces, and we also deliver complete turnkey lines under an EPC contract.

What is included in your EPC service?

Water quality testing, site selection support, process design, project launch preparation, equipment manufacturing and procurement, packing and shipping, installation and commissioning, operator training, finished product production guidance, and output buy-back or decommissioning support where agreed.

Can your salt washing equipment produce food-grade salt?

Our salt washing machinery is used for both food-grade and chemical-grade salt. The achievable grade depends on the crude salt composition and the standard that applies in your market, so we design the washing, crushing, drying and screening stages around your target specification.

How do you support overseas installation?

Our engineers can be dispatched to site for installation and commissioning, train your operators, and stay involved until the line produces finished product at the designed daily capacity.

How do I start a project with Ruitu?

Send us your raw material analysis, target daily capacity, product specification and site information by email or phone. Our technicians will prepare a preliminary budget estimate and an economic benefit analysis based on your budget and expected output.

China Ptfe Lined Pipe Elbow Products & Service

Critical Flow Control

High-Integrity PTFE & Industrial Processing Units

Engineered to withstand ultra-corrosive bromine, halogenated brines, and heavy metallurgical media with zero permeation.

Custom PTFE Lined Reducer Products, Service

View Specifications

China PTFE-Lined Bottom Discharge Valve Products, Service

View Specifications

China Anhydrous Calcium Chloride Drying Equipment Factory, Product

View Specifications

Custom Hammer Crusher Products, Service

View Specifications

Custom Mobile Belt Conveyor Products, Service

View Specifications

Custom Double Stage Piston Pusher Centrifuge Product, Products

View Specifications

Custom Industrial Hot Air Furnace Product, Products

View Specifications

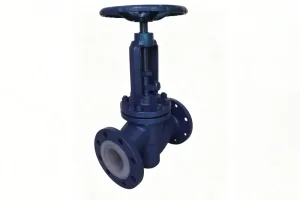

China PTFE-Lined Globe Valve Product, Service

View Specifications

Technical Authority

Engineering PTFE Lined Elbows: Material Integrity & Fluid Dynamics

Overcoming hydrodynamic shear, thermal shock, and stress-cracking in high-velocity chemical transfer.

Isostatic Molding Advantage

Unlike conventional paste extrusion or loose-sleeve assembly, high-pressure isostatic molding packs pure Virgin PTFE powder uniformly across the elbow curvature. This eliminates localized thin spots, porosity, and internal molecular voids, ensuring consistent wall thickness through 45°, 90°, and 180° sweeps.

Full Vacuum Resilience

Under cyclic negative pressure (up to full vacuum at elevated temperatures), inferior liners collapse inward. Our proprietary dovetail mechanical anchoring grooves and perforated carbon-steel shells lock the fluoropolymer structure in place, guaranteeing stability from full vacuum up to 2.5 MPa.

Electrostatic Dissipation

Non-conductive solvents moving around bends generate significant triboelectric charges. We supply conductive and antistatic-grade PTFE liners doped with high-purity carbon matrixes (surface resistivity < 10⁶ Ω), preventing spark-induced pinhole puncturing in combustible operating environments.

-29°C ~ 200°C

Operating Temperature

20 kV

Spark Test Verification

Full Vac

Vacuum Resistance (ASTM F1545)

100%

Hydrostatic Leak Inspection

Global Procurement Trends

Macro-Industry Solutions for Demanding Chemical Environments

Addressing supply chain risks, standardized procurement protocols, and operational safety across continents.

Bromine & Halogen Processing Facilities

Bromine extraction plants encounter dry and wet elemental bromine, gaseous hydrobromic acid (HBr), and acidic bittern. Traditional nickel alloys or titanium experience severe pitting. Our specialized fluoropolymer-lined bends and steel-jacketed piping circuits remain impervious to elemental halogens, drastically cutting unscheduled plant outages across global offshore and salt-lake projects.

High-Purity Specialty Chemical & Active Pharmaceutical Synthesis

In API manufacturing and semiconductor precursor refinement, ion leaching from metallic pipework contaminates batch yields. PTFE-lined pipe elbows provide a completely inert surface profile with zero metallic leaching. Mirror-smooth finishes decrease flow boundary friction and inhibit crystallization crusting.

Nominal Size (DN / NPS)	Liner Material	Nominal Liner Thickness	Pressure Rating	Standard Compliance
DN25 – DN100 (1" – 4")	Virgin Isostatic PTFE / PFA	3.0 mm – 4.5 mm	Class 150 / PN16 / PN25	ASTM F1545 / DIN 2848 / HG/T 21562
DN125 – DN250 (5" – 10")	Molded Virgin PTFE	4.0 mm – 6.0 mm	Class 150 / Class 300 / PN16	ASME B16.5 / EN 1092-1 / ISO 7005
DN300 – DN600 (12" – 24")	Heavy-Wall Formed PTFE	5.5 mm – 8.0 mm	Class 150 / PN10 / PN16	ASTM F1545 / ASME B16.42
Custom Engineered Configurations	Conductive Carbon-Filled PTFE	Customized Specification	Up to 4.0 MPa (Special Order)	CE-PED / ATEX Zone 0 Compatible

Risk Mitigation & QA

International Regulatory Compliance & Factory Verification

Ensuring complete traceability, quality audits, and site-level engineering certifications for overseas EPCs.

EN 10204 3.1 Traceability

Every elbow batch undergoes rigorous material documentation. From raw fluoropolymer molecular weight and density certificates to carbon-steel housing chemical analysis, each component is stamped with an traceable heat number verifying mechanical reliability.

Non-Destructive Testing (NDT)

100% of manufactured pipe elbows undergo non-destructive electrostatic spark testing at up to 20,000 volts to detect any microscopic pinholes. Following spark screening, items undergo hydrostatic shell testing at 1.5× designed working pressure.

Global Logistics & On-Site Alignment

Lined pipe fittings require precise mechanical care during installation. We provide customized end-face flanged protectors to prevent flared liner creep during transit, backed by detailed installation torque sequences for project field crews.

Next-Gen Engineering

Technology Roadmap: Smart Fluoropolymer Lining Systems

Bridging mechanical longevity with intelligent diagnostic predictive maintenance.

Micro-Permeation Vent Detection

Integration of intelligent fiber-optic sensory jackets between the outer steel shell and the inner PTFE liner to detect micro-gaseous permeation early, warning DCS control systems before structural carbon-steel oxidation takes place.

Nanocomposite Matrix Reinforcement

Formulating fluoropolymers with nano-silicon carbide (SiC) and graphene platelets to boost linear abrasion resistance tenfold against abrasive crystal slurries, such as concentrated sodium chloride and calcium chloride crystallizers.

Low-Carbon Zero-Sintering Technologies

Developing ultra-dense thermodynamic bonding methods that reduce power requirements during high-temperature PTFE sintering cycles by 35%, supporting global carbon-neutral operational benchmarks for heavy chemical manufacturing.

Technical Inquiry Matrix

Frequently Asked Questions on PTFE Lined Pipe Systems

Essential guidance for chemical process engineers, plant maintenance supervisors, and procurement officers.

How does a PTFE-lined elbow differ from a PFA-molded elbow?

PTFE (Polytetrafluoroethylene) is processed via paste extrusion or compression sintering because of its extraordinarily high molecular weight and melt viscosity. It exhibits optimal chemical resistance up to 260°C. PFA (Perfluoroalkoxy) is melt-processable, allowing complex injection-molded geometries with ultra-smooth finishes. In standardized elbow sizes, PTFE offers greater overall thermal stability and cost-efficiency.

What causes liner collapse in vacuum service and how is it prevented?

Liner collapse occurs when negative pressure overcomes the structural hoop strength of an unanchored liner, exacerbated by elevated temperatures. We counteract this by precision-machining interior dovetail mechanical anchoring grooves within the steel elbow and utilizing isostatic forming techniques to lock the fluoropolymer securely against the housing.

What are the torque and bolt tightening recommendations during installation?

Fluoropolymer liners have cold-flow tendencies under excessive, non-uniform stress. Installation must employ a cross-pattern star bolt-tightening sequence using a calibrated torque wrench. Tightening must be completed in three phases (20%, 60%, and 100% of nominal torque) with a re-torque performed after 24 hours of operation to adjust for plastic relaxation.

Can PTFE-lined elbows handle solid slurries and abrasive particles?

Standard PTFE performs well with small, suspended soft crystals; however, high-velocity abrasive slurries (e.g., concentrated sand or large crystal calcium cake) can induce physical abrasion around the outer radius of an elbow bend. For abrasive environments, we configure custom elbows with modified fluoropolymers or ceramic-polymer matrix blends.
