Featured Vacuum Process & Fluid-Handling Hardware
Engineered to operate seamlessly alongside laboratory vacuum drying ovens, chemical-grade evaporation tanks, and automated crystalline desiccation processing lines.
China PTFE-Lined Bottom Discharge Valve Products, Service
Explore Specification
Custom Industrial Hot Air Furnace Product, Products
Explore Specification
Custom Screening And Packaging Machinery. Multi-Level Vibrating Screen For Refined Salt, Automatic Packaging Machine For Refined Salt Products, Service
Explore Specification
China PTFE Lined Elbow Product, Products
Explore Specification
China PO/PE Lined Tank Products, Service
Explore Specification
Custom PTFE-Lined Gate Valve Factories, Factory
Explore Specification
Custom Stainless Steel Screw Flight for Solid-Water Separation Equipment Factories, Factory
Explore Specification
China PTFE Lined Four-Way Factories, Products
Explore SpecificationGlobal Enterprise Procurement Trends & Technical Requirements
Analyzing critical procurement vectors across North America, the European Union, and the Asia-Pacific region for research-scale and pilot-scale vacuum desiccation systems.
Thermal Uniformity & Shelf Conduction
Global pharmaceutical laboratories and battery cathode synthesis facilities demand spatial temperature uniformity within ±1.0°C across all internal shelves. Modern OEM buyers prioritize directly heated individual shelves with circulating thermal oil jackets or calibrated micro-strip heating arrays over radiant-wall ovens to eliminate localized hot spots and sample denaturing.
- PID multi-zone heating profiles with 0.1°C precision
- Direct contact conduction plates (Aluminum alloy or 316L SS)
- Multi-point thermal mapping compatible with EN 285 protocols
Deep Vacuum Integrity & Leak Rates
Advanced synthesis involving oxygen-sensitive coordination complexes or organometallic precursors requires deep sub-atmospheric evacuation down to 10-2 mbar (0.01 Torr) or higher. Procurement specifications strictly penalize chamber outgassing and require helium mass spectrometry leak verification confirming leak rates below 1 × 10-7 mbar·L/s.
- Viton, FFKM, or pure PTFE seamless molded door gaskets
- KF25 / KF40 / ISO-K rapid-clamping high-vacuum flanges
- Integrated digital Pirani-Penning vacuum gauges with 4-20mA telemetry
Halogen & Corrosive Acid Resilience
In processes involving acidic bromine extraction derivatives, chlorination reaction matrices, or fluorinated electrolyte formulations, conventional 304 stainless steel chambers corrode rapidly. Top-tier engineering buyers necessitate fluoropolymer (PTFE/PFA) chamber internal coatings or high-molybdenum Hastelloy C-22 constructions with PTFE-lined vacuum valves.
- Electro-static spray or seamless bonded PTFE sheet linings
- Passivated electropolished inner walls (Ra < 0.38 μm)
- Acid condensation exhaust traps with automated drainage
Multi-Sector Enterprise Solutions & Process Integration
Custom lab vacuum drying ovens serve as foundational hardware across cleanroom R&D, hazardous solvent distillation, and extreme material characterization.
| Industrial Sector | Core Process Vector | Critical Vacuum / Thermal Parameters | Integrated Engineering Equipment | Standard Compliance |
|---|---|---|---|---|
| Lithium-Ion & Solid-State Batteries | Residual solvent desolvation from electrode active materials (NMP, DI water) without binder degradation. | 110°C to 140°C ± 1.0°C, vacuum level < 1 mbar, continuous purge with Ultra-High Purity N2 / Argon. | PTFE-lined vacuum isolation valves, industrial hot air pre-heaters, inert gas backfill manifolds. | ATEX Zone 2 / IECEx explosion containment for volatile hydrocarbon solvent vapor handling. |
| Biopharmaceuticals & APIs | Secondary low-temperature desiccation of heat-labile lyophilized proteins, antibiotics, and active precursors. | 30°C to 45°C, precision vacuum throttling from 100 mbar to 0.1 mbar, moisture content < 0.1%. | Sub-zero liquid cold traps (-80°C), sanitary Tri-Clamp diaphragm vacuum valves, CIP/SIP systems. | cGMP Annex 1 cleanroom rating, FDA 21 CFR Part 11 data logging, electropolished 316L (Ra < 0.4 μm). |
| Halogen & Bromine Salt Chemistry | Purification and final moisture elimination of refined high-purity inorganic bromide, chloride, and specialty salts. | 80°C to 180°C, chemical vacuum resistant to chlorine/bromine trace fumes, acid-proof vapor conduit. | PTFE-lined gate/butterfly valves, Hastelloy condenser coils, caustic soda scrubber tail gas scrubbers. | ASME Section VIII Div 1 pressure/vacuum vessel compliance, ISO 9001 certified batch records. |
| Advanced Aerospace Composites | Degassing of high-viscosity carbon fiber epoxy matrices, ceramic matrix green bodies, and optical components. | Up to 250°C ± 1.5°C, deep vacuum ramp-up down to 0.01 mbar, rapid controlled cooling cycle. | Heavy-duty dual-stage rotary vane vacuum pumps, dry screw vacuum pumps, multi-shelf thermal fluid jackets. | NADCAP thermal processing compliance, AMS2750G pyrometry calibration audit trail. |
Technology Roadmap & Next-Generation Vacuum Systems
A strategic timeline showcasing evolutionary advancements in artificial intelligence control loops, closed-loop green solvent recovery, and continuous modular processing.
Intelligent In-Situ Mass Spectrometry
Embedding miniaturized quadrupole mass spectrometers directly within the oven exhaust duct to monitor solvent vapor release rates in real-time, terminating cycles precisely at equilibrium rather than relying on timer estimation.
Closed-Loop Cryogenic Solvent Condensation
Zero-emission desiccation architectures integrating -100°C closed-loop Stirling chillers to capture 99.8% of hazardous solvents (DMF, DMSO, NMP, alcohols), preventing atmospheric venting and protecting vacuum pump fluids.
Continuous Modular Vacuum Tunnels
Transitioning batch laboratory drying into continuous multi-stage lock-chamber vacuum tunnels using high-vacuum robot load-locks, providing continuous drying for pilot production lines without breaking chamber vacuum integrity.
Autonomous AI Process Optimization
Self-tuning neural network algorithms analyzing chamber vacuum decay curves, sublimation latent heat absorption, and material vapor pressures to dynamically modulate shelf temperatures and prevent boiling foaming.
Global Commercial Landscape & Supply Chain Dynamics
How high-vacuum thermal processing hardware manufacturing addresses surging global demand, material inflation, and stringent energy efficiency directives.
Localization & Dual-Sourcing Mandates
Multinational chemical and pharmaceutical giants are aggressively migrating from single-vendor dependence toward dual-sourcing procurement. Original Equipment Manufacturers with scalable factory footprints in China combined with international commissioning support offer an optimal balance of capital expenditure reduction (saving 35-50% vs European/US brands) without sacrificing metallurgic precision.
Total Cost of Ownership (TCO) Compression
High-vacuum ovens represent energy-intensive operations over extended operating cycles. Leading custom factories now integrate multi-layer ceramic fiber aerogel insulation jackets, direct-drive variable-frequency dry vacuum pumps, and recuperative heat recovery loops that diminish overall power consumption by up to 28% across 8,000 annual operating hours.
Stringent Cleanliness & Particle Containment
As semiconductor wafer fabrication and pharmaceutical formulation standards advance, ovens must operate under ISO Class 5 / Class 6 cleanroom conditions. This necessitates oil-free scroll or multi-stage dry claw pumping systems, stainless steel exterior mirror polishes, magnetic drive door latches to prevent metal particulate generation, and HEPA laminar intake filtration.
Localized Engineering Support & Regulatory Compliance
Bridging global factory production with localized on-site deployment through comprehensive factory acceptance testing, rigorous documentation, and international statutory certifications.
FAT / SAT & Commissioning Verification
Every custom vacuum oven unit undergoes exhaustive Factory Acceptance Testing (FAT) prior to international dispatch. Procedures include 72-hour continuous vacuum retention trials, full-chamber multi-point thermocouple mapping according to DIN 12880, and spark testing on all internal PTFE and polymer barrier liners.
Explosion Protection & ATEX Compliance
For installations handling flammable solvents (ethanol, acetone, heptane), ovens are constructed strictly adhering to ATEX 2014/34/EU and NFPA 86 Class A standards. System designs include explosion-relief burst discs, inert nitrogen purge interlocks, intrinsically safe barrier relays, and static-dissipative PTFE earthing connections.
Complete Turnkey DQ/IQ/OQ/PQ Dossiers
We supply standardized cGMP qualification packages customized for biopharma compliance. Full traceability packages include 3.1 material certificates for 316L stainless steel, roughness measurement logs, calibrated sensor traceable NIST calibration reports, and software validation documentation for PLC/HMI platforms.
Frequently Asked Technical & Engineering Questions
Comprehensive engineering insights regarding custom lab vacuum drying ovens, corrosive-resistant components, and vacuum line integration.
In a deep vacuum environment below 1 mbar, gas molecules are largely evacuated, causing molecular thermal convection to drop to near zero. Radiation heat transfer follows the Stefan-Boltzmann law and is inefficient at low temperatures (< 100°C). Direct conductive heat transfer via precision-machined contact shelves provides rapid, uniform caloric transfer directly to sample trays, shortening drying cycles by 40% to 65% and preventing hot-spot variations.
When subjecting lined vessels or piping to high vacuum, loose sheet liners risk collapsing away from the carbon steel or stainless steel outer shell due to trapped air or pressure differentials. High-vacuum-rated PTFE systems utilize bonded fluoropolymer constructions, dovetail mechanical anchoring grooves, or thick-wall isostatic molded PTFE structures certified under ASTM F1545 to maintain structural adherence under continuous full vacuum (-0.1 MPa) up to 200°C.
Standard oil-sealed rotary vane pumps degrade quickly when handling volatile hydrochloric, hydrobromic, or sulfuric acid vapors as moisture acidifies the lubricating hydrocarbon oil. For corrosive halide environments, we integrate chemical-duty dry multi-stage Roots or PTFE diaphragm backing pumps paired with inline chilled glass or Hastelloy cold traps (-40°C to -80°C) and downstream caustic gas neutralizers.
Yes. Custom units can be engineered with pharmaceutical-grade industrial PLCs (Siemens S7-1500 or Allen-Bradley GuardLogix) combined with SCADA interfaces featuring multi-level hierarchical user access, encrypted relational audit logging, automatic non-editable PDF batch record generation, electronic signature sign-offs, and dual redundant RTD sensor cross-checking.
According to the Clausius-Clapeyron equation, lowering the ambient pressure systematically depresses the vapor-liquid equilibrium boiling temperature. For instance, water boils at 100°C at atmospheric pressure (1013 mbar), but vaporizes at 7°C at 10 mbar, and freezes/sublimates below 6.11 mbar. Vacuum ovens allow high-efficiency removal of high-boiling-point solvents without thermally degrading delicate pharmaceutical proteins or active enzymes.
Standard catalog models are available within 2-4 weeks, whereas custom-engineered chambers (incorporating custom dimensions, high-vacuum viewports, internal glovebox pass-through interfaces, explosion relief, or special alloys like Inconel 625) typically require 6-10 weeks. This includes detailed 3D CAD modeling, FEA stress simulations under vacuum, in-house fabrication, and full FAT testing.
Corrosion-Resistant Valves, Fluid Routing & Mechanical Components
Heavy-duty PTFE-lined valves, expansion joints, storage vessels, and mechanical auger assemblies engineered to interface with large-scale industrial drying systems.

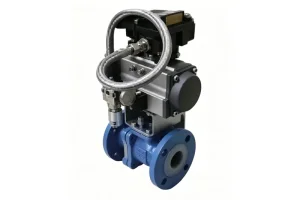

China PTFE-Lined Pneumatic Ball Valve Factories, Service
Explore Specification
Custom PTFE-Lined Pneumatic Butterfly Valve Factory, Products
Explore Specification
Custom PTFE-lined Dosing Tank Product, Service
Explore Specification
China PTFE-Lined Expansion Joint Product, Products
Explore Specification
Custom PTFE-Lined Y-Strainer Factories, Factory
Explore Specification

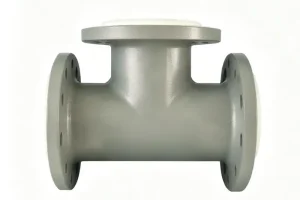

Custom PTFE Lined Tee Factory, Service
Explore Specification
Custom One-Time Formed Cold-Rolled Screw Flight | Harvester Auger Blade Products, Service
Explore Specification
Custom PTFE-Lined Ball Valve Factory, Product
Explore SpecificationEngineer Your Custom Vacuum Desiccation Architecture
Consult with our process engineering staff to configure chamber dimensions, internal metallurgy, vacuum pumping trains, and hazardous solvent recovery systems tailored specifically to your pilot plant or commercial synthesis line.
